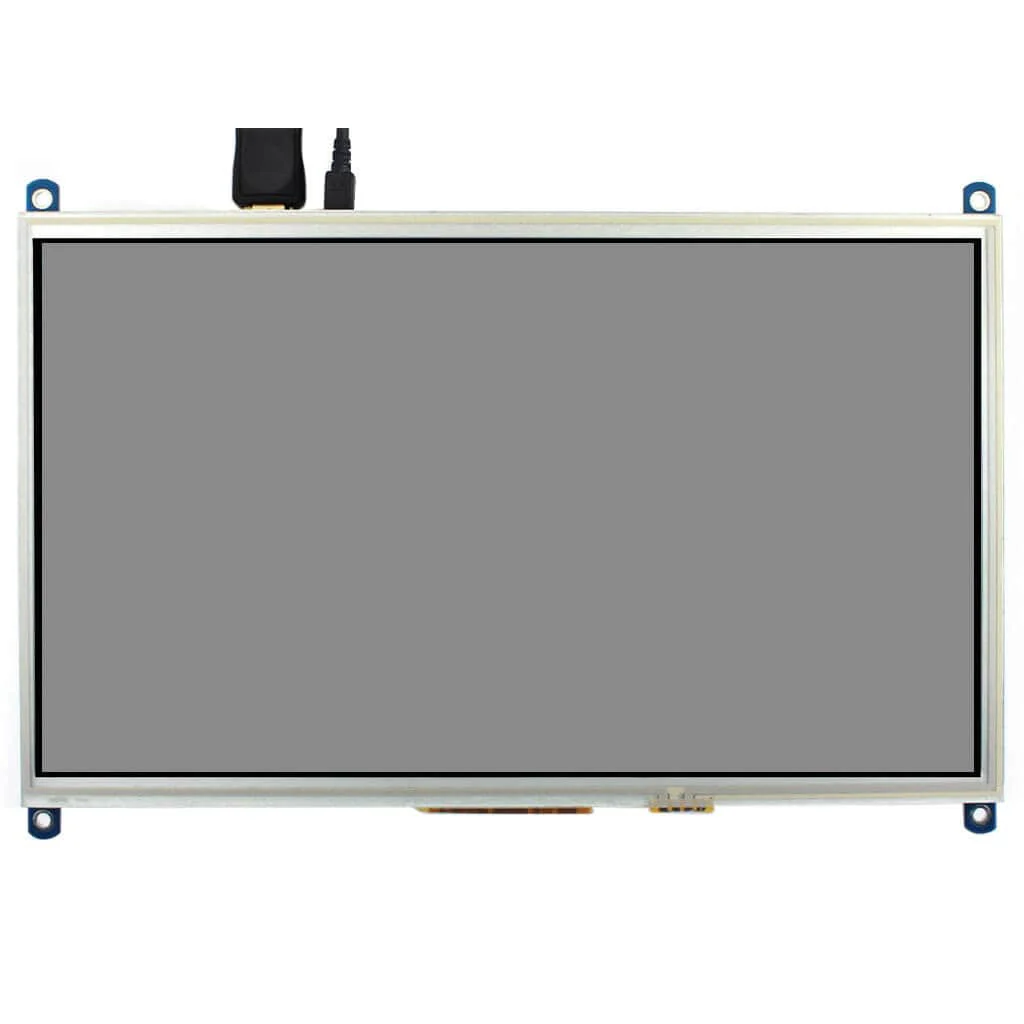

This Waveshare 10" IPS Resistive Touchscreen LCD features a resolution of 1024x600 with wide viewing angles and is Raspberry Pi and Raspberry Pi Zero compatible, with an onboard 40-pin female GPIO header and included set of HDMI PCB adapters.

This 10" display is Raspberry Pi OS and RetroPie compatible and is completely driver-free which makes implementation super easy. Ubuntu, Kali, and Windows 10 IoT are supported as well but feature single-point touch recognition. Windows versions 7-11 are also supported with five-point touch recognition.

When used in conjunction with a Raspberry Pi, the 5-point touch interface is handled via the SPI Bus. When used with a PC, a USB connection is required for touch functionality. Side buttons are included for controlling the on-screen menu.

Online development resources are available, which include wiring guidance and example code, with additional information being found on the product Wiki.

Connection Examples

Raspberry Pi

Raspberry Pi Zero

PC

Specifications

• Operating Voltage: 5V
• Connection Interface: HDMI & USB
• Display Panel: IPS
• Resolution: 1024x600 pixels
• Display Size: 10.1-inch

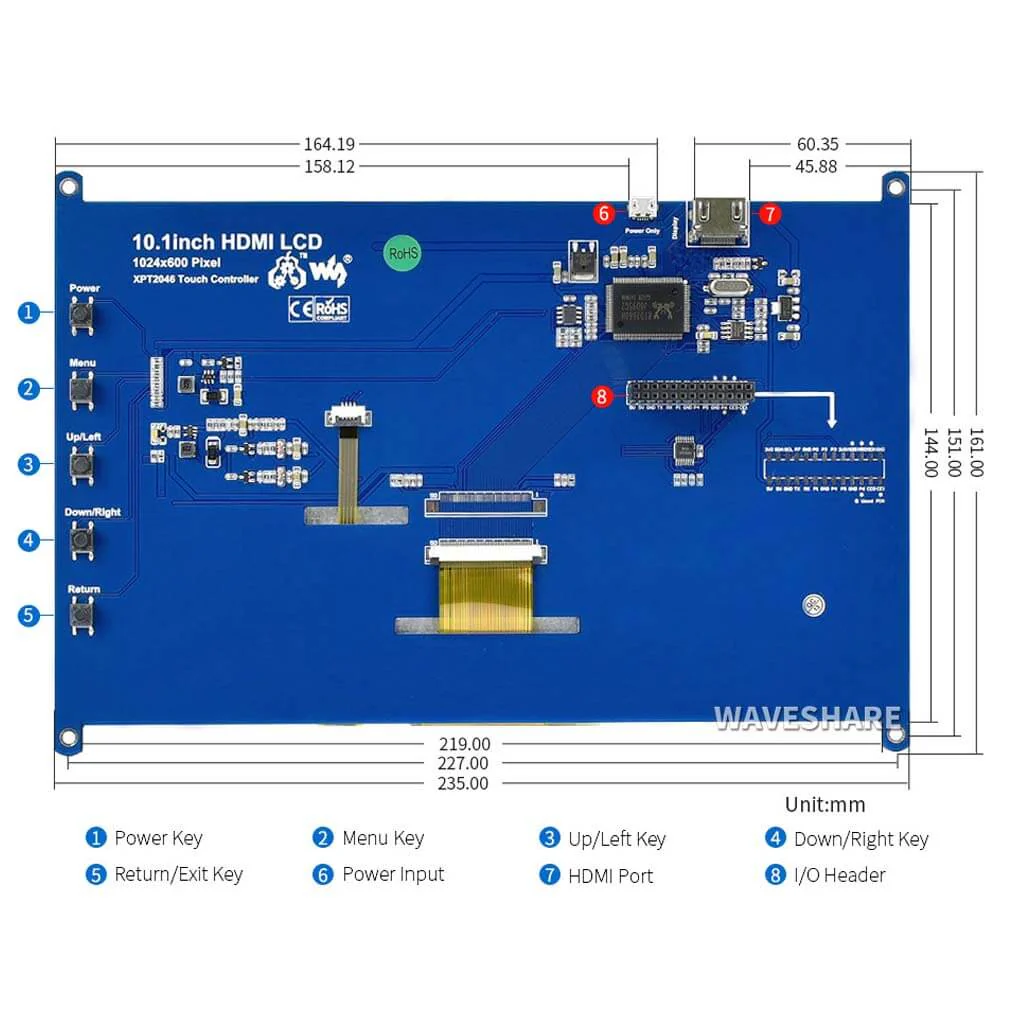

• Dimensions: 235 × 161 mm
• Touch Screen Type: Resistive

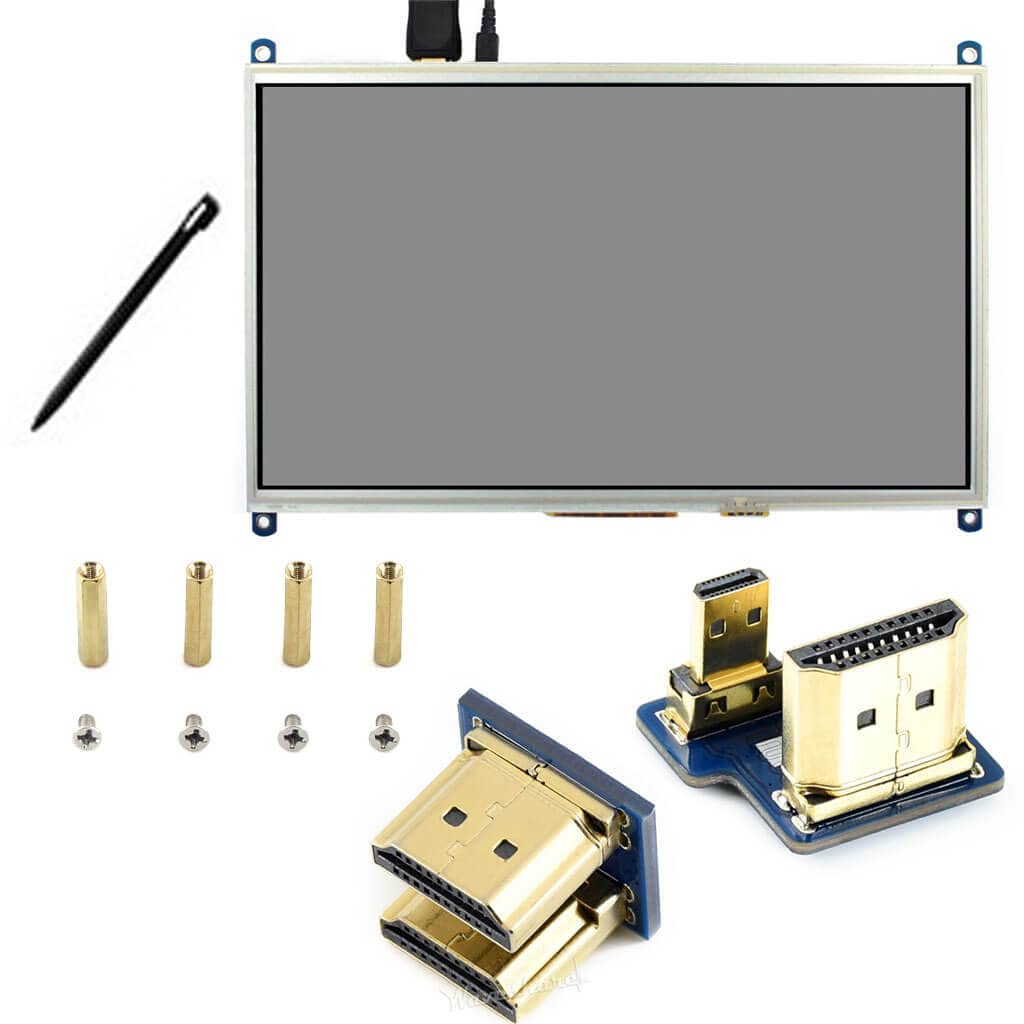

Package Contents

• 1x 10.1inch HDMI LCD
• 1x HDMI Adapter (A)
• 1x HDMI Adapter (B)
• 1x Touch stylus
• 1x RPi screws pack (4pcs)
• 1x Quick start sheet

Resources

• Product Wiki & Manual
