16MB PSRAM Chip for Teensy 4.1
The 16MB PSRAM Chip for Teensy 4.1 adds 128Mbit (16MB) of high-speed pseudo-static RAM using SPI and QPI interfaces, providing expanded memory capacity for advanced Teensy 4.1 applications and data-intensive projects.

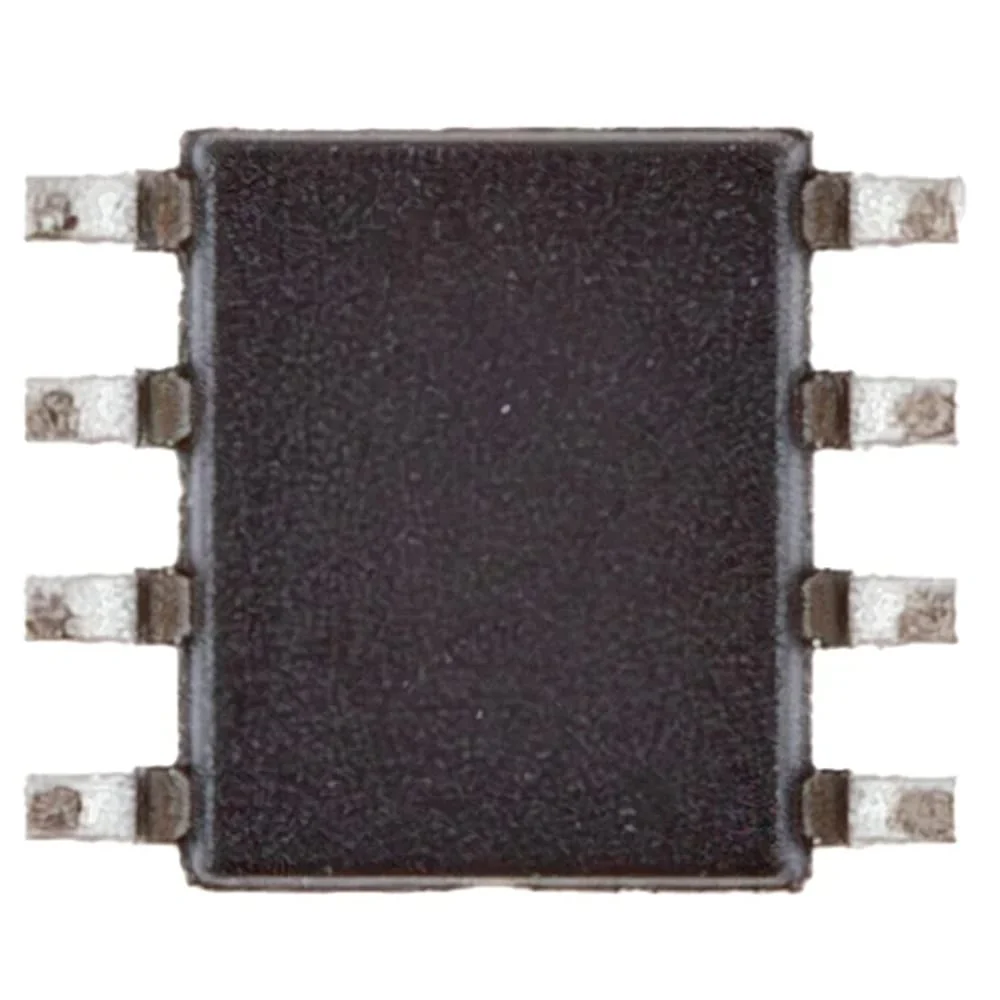

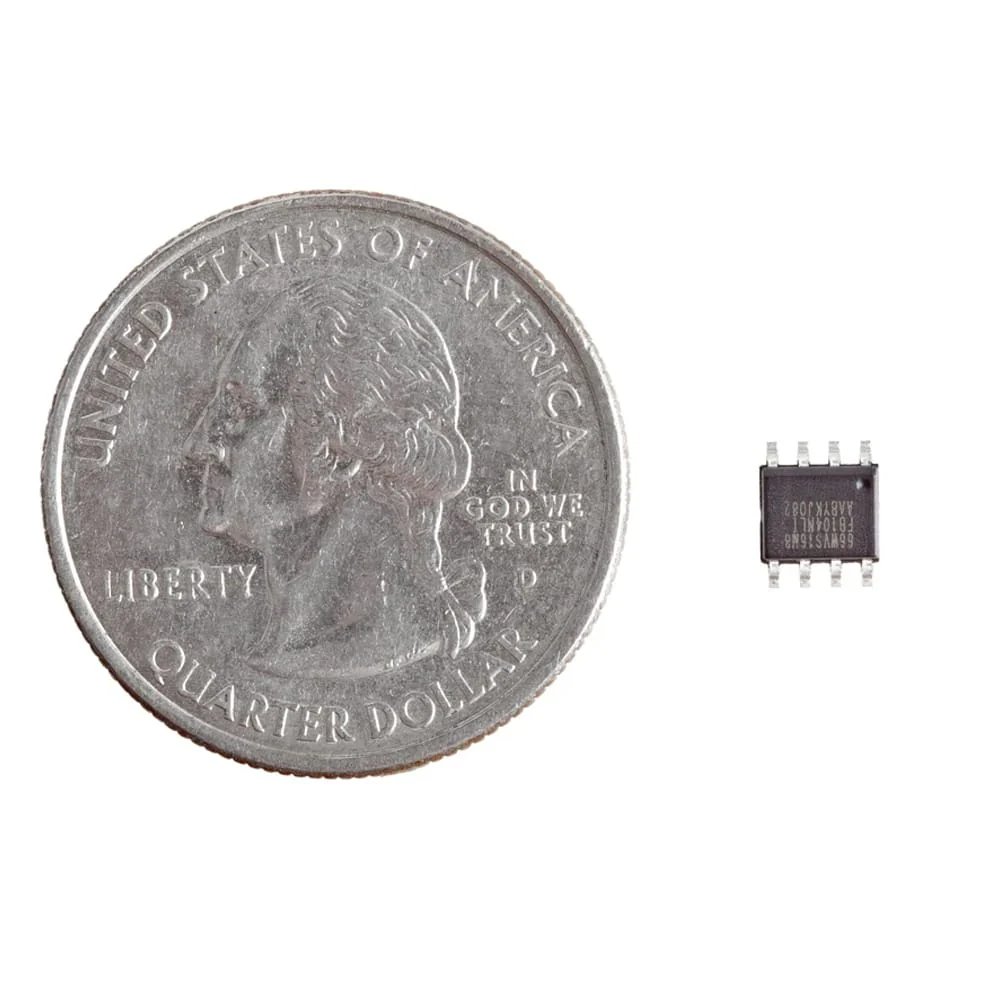

The 16MB PSRAM Chip for Teensy 4.1 (IS66WVS16M8FBLL-104NLI) is an integrated memory device containing 128 Mbits of Pseudo Static Random Access Memory (PSRAM) using a self-refresh DRAM array organized as 16 Megabytes words by 8 bits.
This device is a dual die stack of two 64Mb die.
The device supports SPI (Serial Peripheral Interface) & QPI (Quad Peripheral Interface) protocols, Very Low Signal Count (6 signal pins: CLK, CE#, and 4 SIOs), Hidden Refresh Operation, and Industrial temperature and Automotive A2-grade temperature.
In-Band Reset is supported instead of a dedicated RESET# pin, and the minimum transferred data size is 8 bits.
If 16MB is too much for you, check out the 8MB PSRAM Chip for Teensy 4.1!
Features and Specifications
- Memory Size: 128 Mbit
- Memory Type: PSRAM
- Organization: 16 M x 8
- Access Time: 7ns
- Maximum Clock Frequency: 104MHz
- Interface Type: SPI
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 2.7V
- Supply Current - Max: 300uA
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: +85°C
- Mounting: SMD/SMT
- Package: SOIC-8
- Moisture Sensitive: Yes
- MFG #: IS66WVS16M8FBLL-104NLI
Resources
- Product datasheet
Package Contents
- 1x 16MB PSRAM Chip for Teensy 4.1
