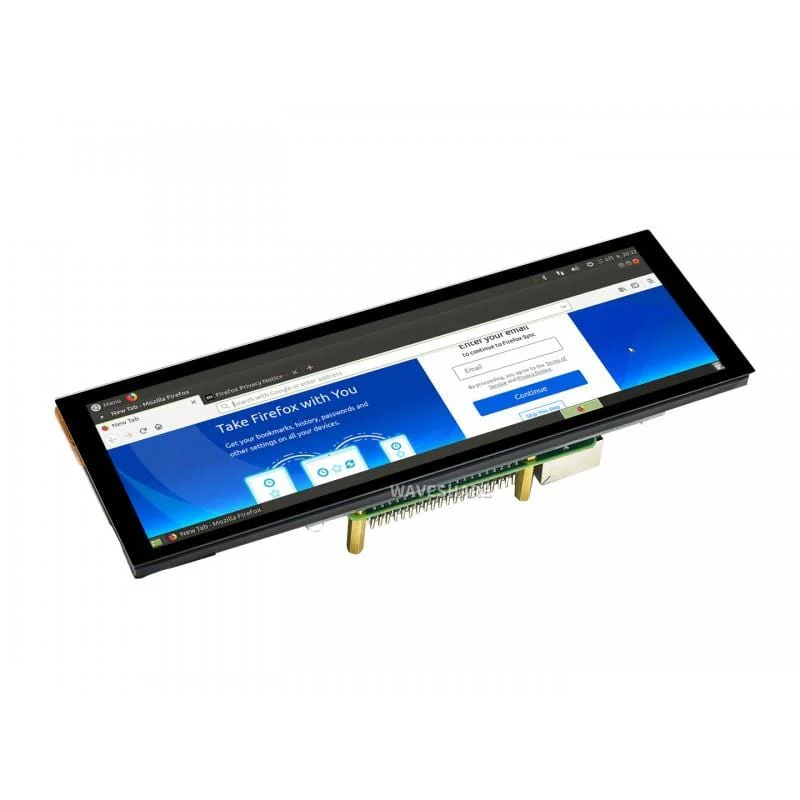

This wide IPS display is 7.9" wide with 170° viewing angles and a capacitive 5-point touch display - great for all kinds of interesting projects displaying lots of data!

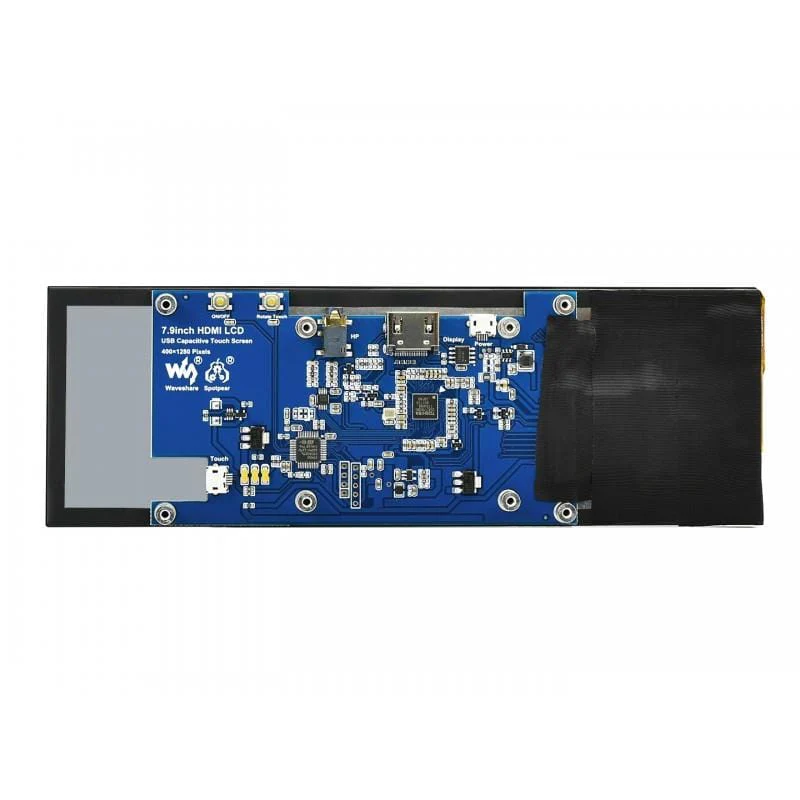

The display has a 400x1280 resolution and supports generic HDMI inputs, meaning you can use this with different input devices including the Raspberry Pi. which has dedicated mounting points on the display. The rear controller board has a USB input for touch control with your device, buttons for touch rotation & on/off/brightness and a 3.5mm audio output jack.

The screen has toughened glass with up to 6H hardness for excellent scratch resistance and rear mounting points for fixing to an enclosure.

Cables and adapters are included for use with different devices, including dedicated PCB adapters for the Raspberry Pi.

Note: Not all devices (HDMI devices) will support all of the features of this display. Your Raspberry Pi will require some simple configuration to use this display.

A larger 11.9" version is also available as well as a Raspberry pi-specific DSI version!

Features

• 7.9" IPS display
• Compatible with the Raspberry Pi and other HDMI devices
• Resolution: 400x1280
• 5-point capacitive touch
• HDMI input
• 170° viewing angles
• USB touch interface
• Button controls for rotation/brightness/on/off
• 3.5mm Audio jack output
• Toughened glass up to 6H hardness
• Dimensions: 207.78mm x 69.80mm

Compatibility

This display is compatible with the Raspberry Pi 4, 3 and 2 with the included cables and adapters (and simple configuration detailed in the product Wiki).

To use this display with a Raspberry Pi Zero you will need to purchase an additional adapter for the HDMI connection.

Package Contents

• 1x 7.9" HDMI LCD
• 1x HDMI cable
• 1x USB-A to Micro-B cable
• 1x HDMI Adapter (B)
• 1x USB Adapter (B)
• 1x HDMI Adapter (C)
• 1x USB Adapter (C)
• 1x Screws pack

Raspberry Pi not included

Resources

• Product Wiki
