12mm Coin Cell Breakout with On-Off Switch

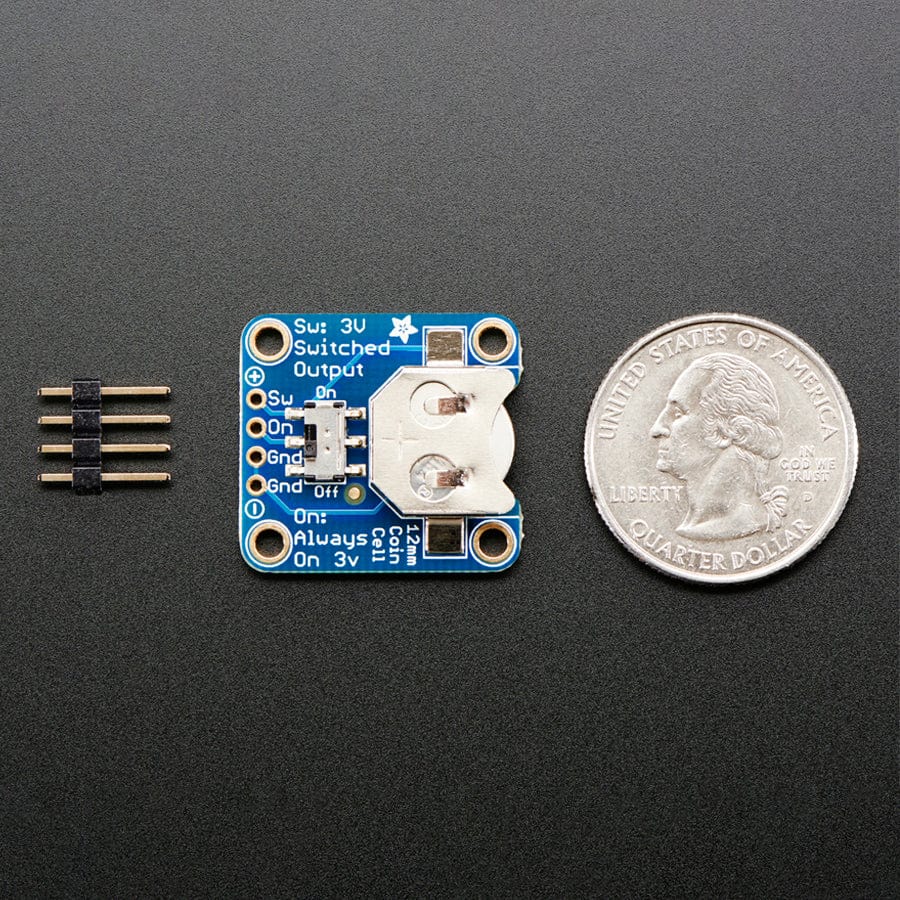

Simple but effective - this breakout board has a CR1220 coin cell battery holder soldered on, an on/off switch and 0.1" pitch breakout pins for easy connecting. Great for powering very low-current projects, or adding a battery backup circuit to a real-time clock or similar. There are two ground pins, one 'switched' power pin, and one pin that is always on.
Comes with one fully assembled and tested breakout plus a small stick of 0.1" header so you can solder it on and plug it into a breadboard.
We also have a version without a switch
Note: Battery is NOT included
Specifications
Dimensions:
- 25mm x 23mm x 5mm
- Mounting hole distance: 18mm x 19.8mm
- Weight: 2g
