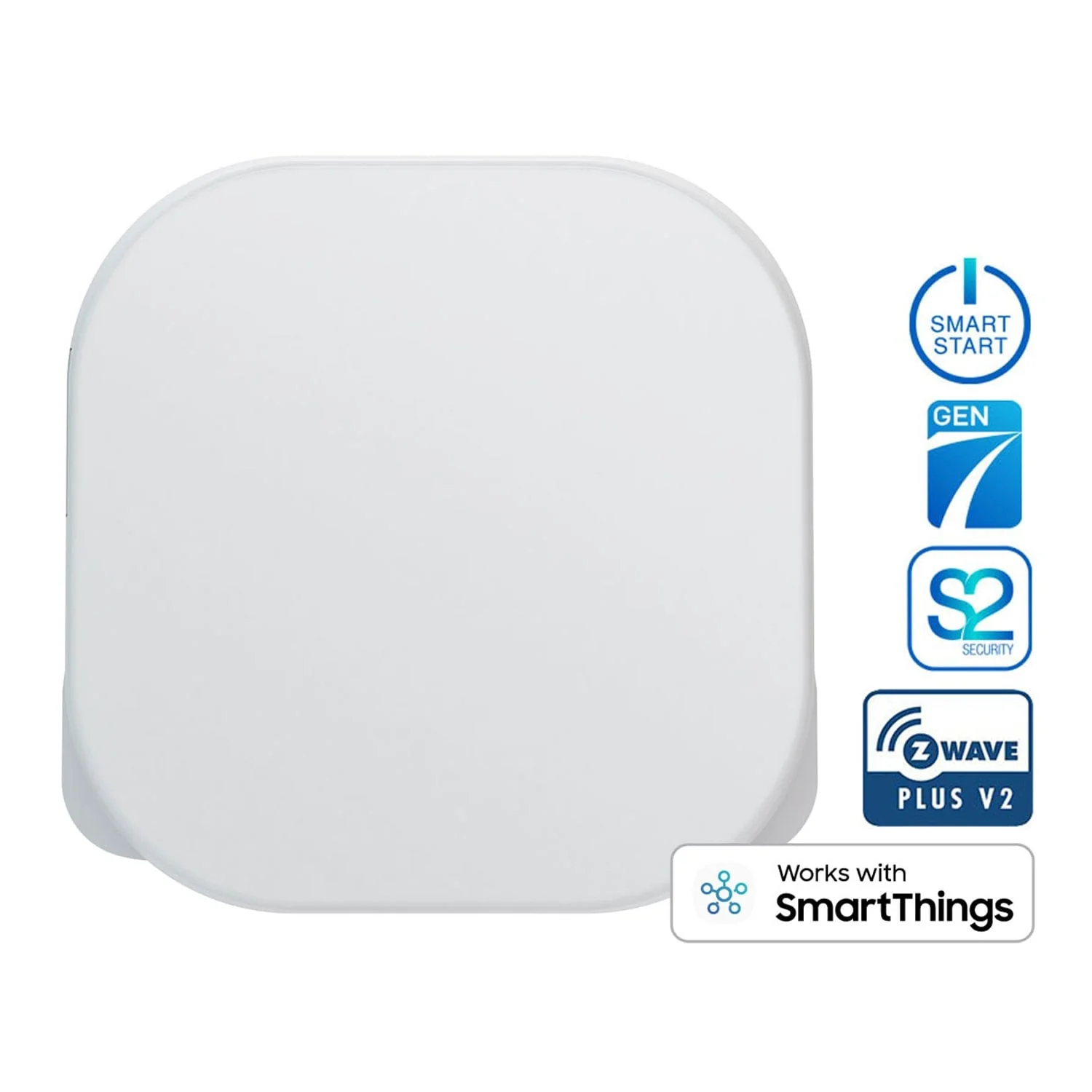

Aeotec Z-Wave Range Extender 7 (UK)
The Aeotec Range Extender 7 (UK) is a simple Z-Wave 700-series plug-and-play device that works to perfect your home automation system. It receives Z-Wave and Z-Wave Plus signals, repeats them, and then rebroadcasts them to your Z-Wave automation network, boosting the range and reliability of your Z-Wave devices.
The Aeotec Range Extender 7 works seamlessly to amplify and repeat weak Z-Wave and Z-Wave Plus signals. Simply plug it into a UK power socket, connect it to your Z-Wave network, and it automatically starts improving any poor Z-Wave signals that are in range.
Built upon Aeotec's proprietary Gen7 hardware and firmware stack, it has a wireless range that’s up to 250% higher than the previous Range Extender 6 and non-Gen7 technology and is compatible with most certified Z-Wave gateways.
The extender is built upon the most advanced wireless automation technology available. It couples Aeotec's unique Gen7 technology stack, with Z-Wave Plus V2 and 700 series. That allows a massive range of improvements including S2 security and SmartStart installation.
You will need a Z-Wave hub/existing Z-Wave network to use this device.
Features
- Z-Wave Repeater - A simple plug-and-play device
- Plug type G (UK 3-pin plug)
- Built with Z-Wave 700 series
- UK/EU 868.4 Mhz Z-Wave frequency
- Wireless technology: Z-Wave Plus V2
- SmartStart enabled
- S2 Security
- Power supply: 230V 50Hz, Max: 150mA
- Power consumption: 1,2W
Specifications
- Hardware Platform: ZGM130
- IP Class: IP20
- Voltage: 230V
- Device Type: Repeater
- Network Operation: Always On Slave
- Firmware Version: 1.00
- Z-Wave Version: 7.11.00
- Certification ID: ZC12-19080007
- Z-Wave Product Id: 0x0371.0x0104.0x00BD
- Firmware Updatable: Updatable by Consumer by RF
- Colour: White
- Frequency: Europe/UK 868.4 Mhz
- Maximum transmission power: 5mW
- Dimensions: 48 x 44 x 47 mm
- Weight: 65g
- EAN: 1220000016590
Resources
Package Contents
- 1x Aeotec Range Extender 7 (UK version)
