Google Coral Camera [Discontinued]

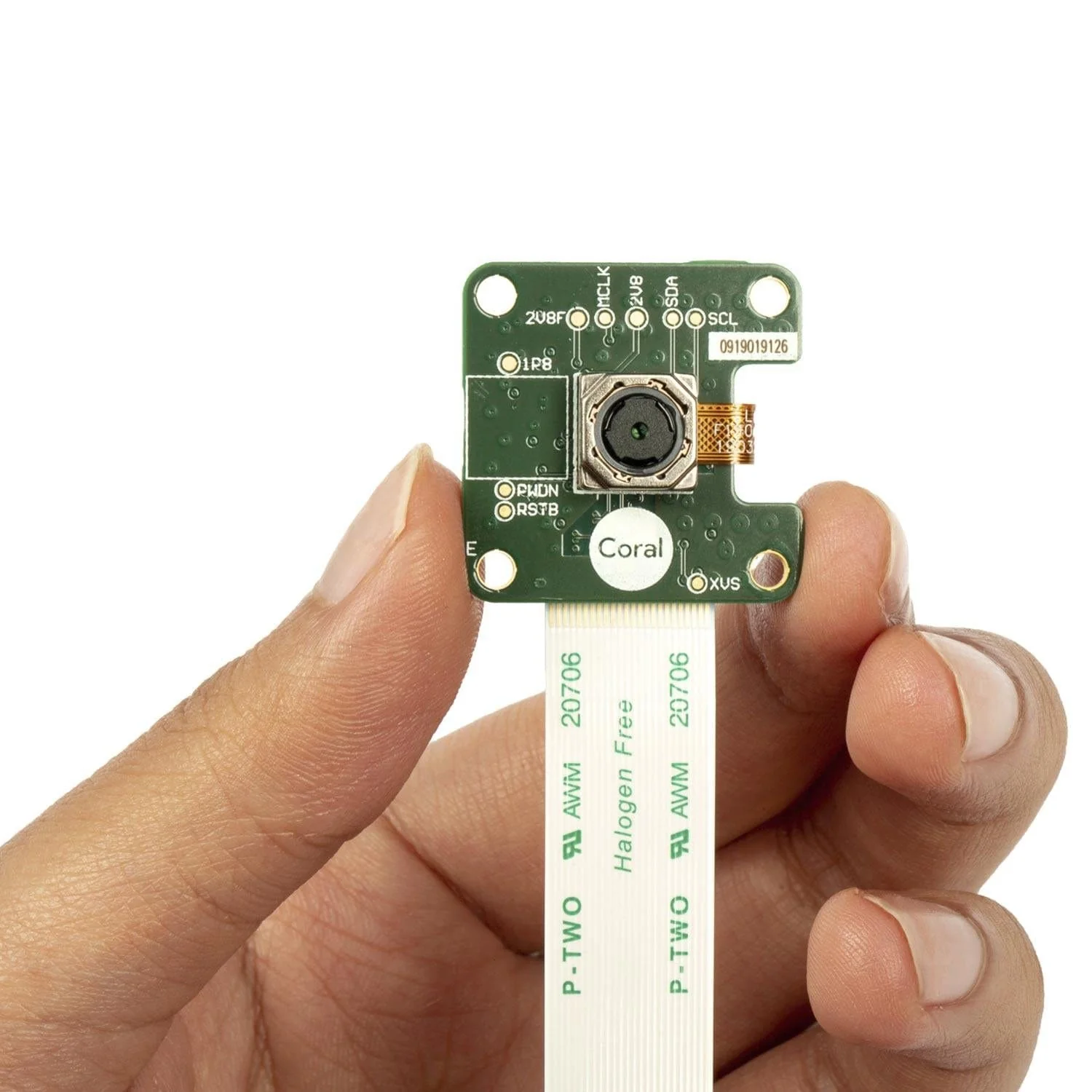

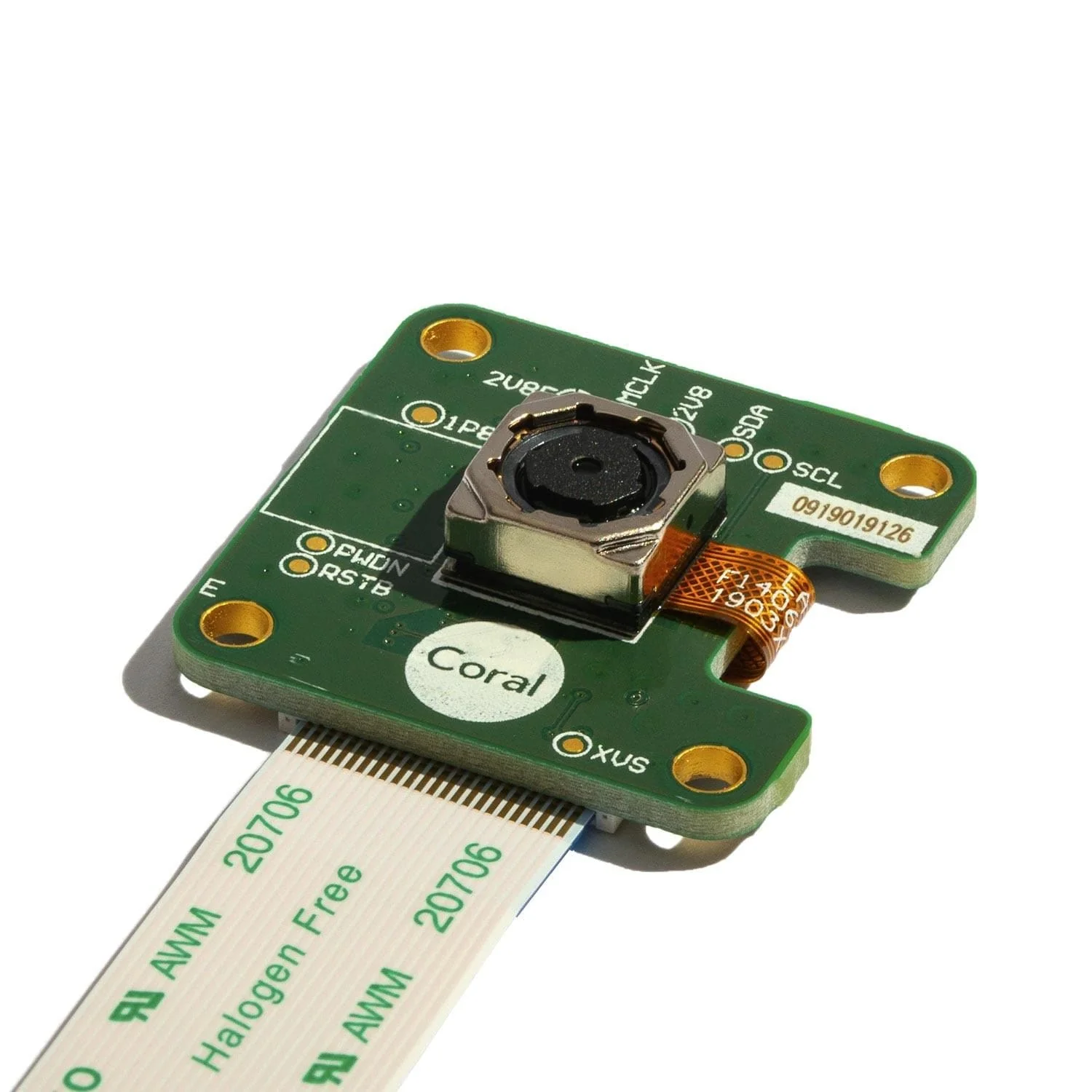

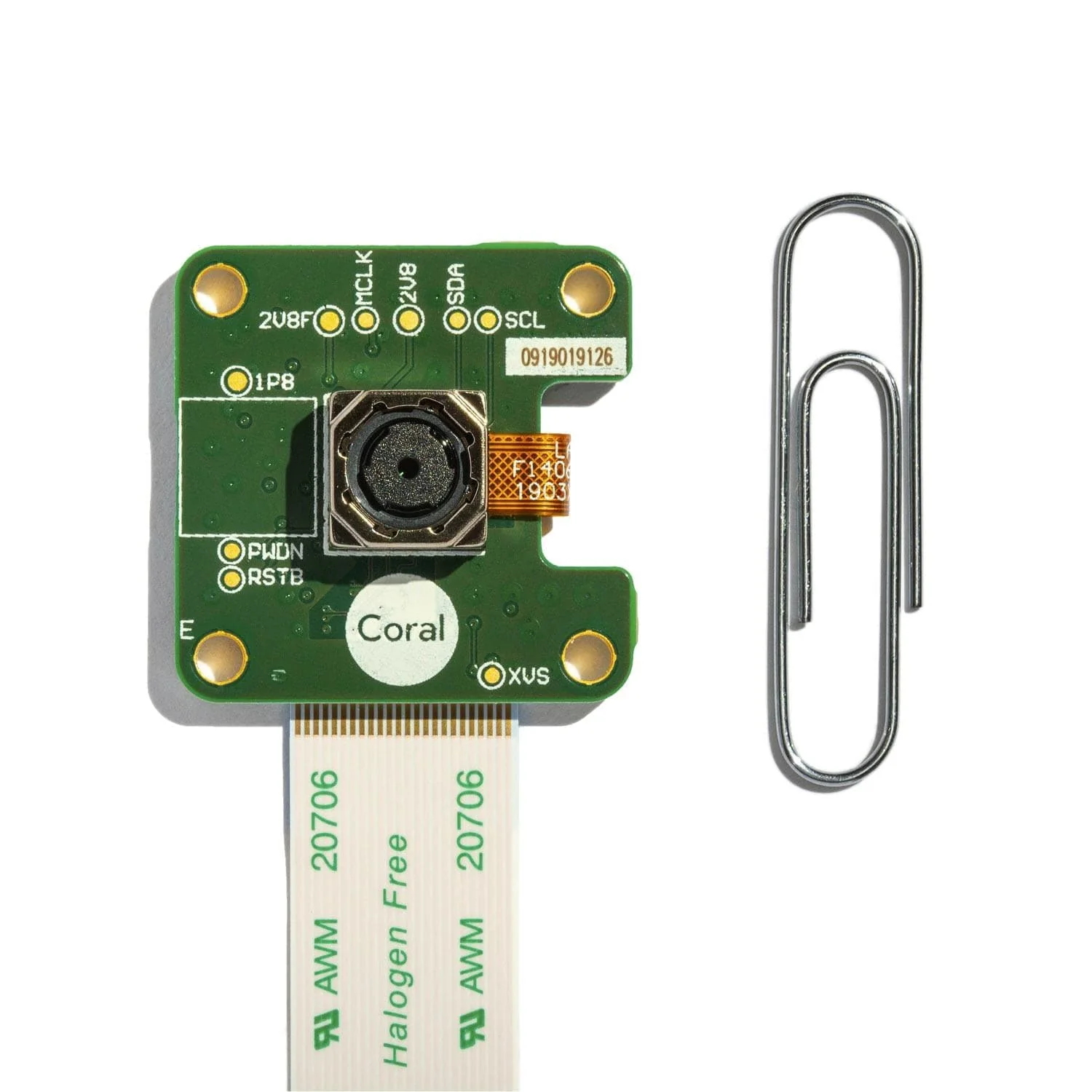

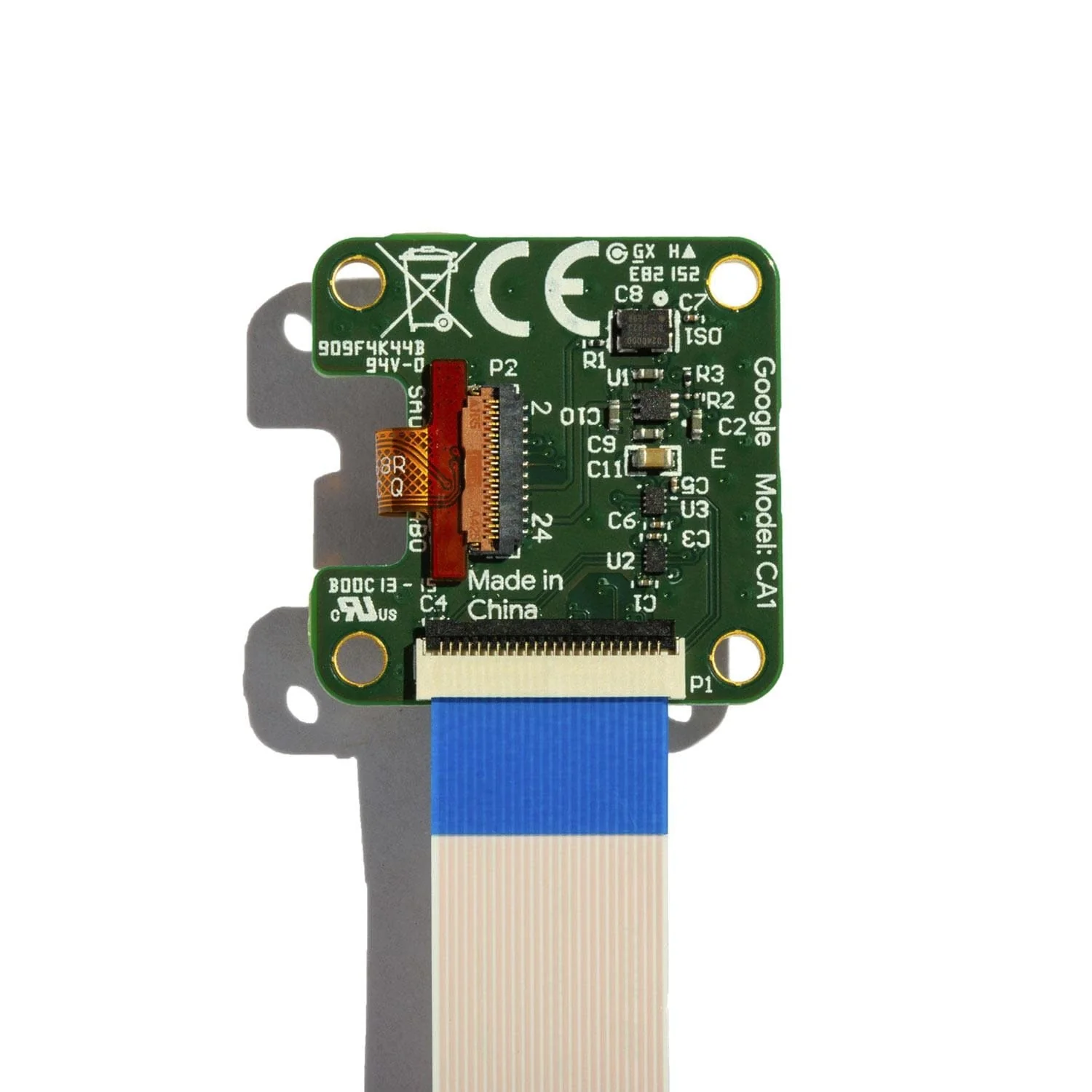

A 5-megapixel camera module that's compatible with Coral boards. Connects through the MIPI-CSI interface, and provides an easy way to bring visual input into your models.
The camera connects via the MIPI-CSI interface of the Google Coral Dev Board/Dev Board Mini and allows you to easily add visual input to your machine learning models.
This camera has an autofocus feature (AFC) with a built-in AFC VCM driver. Autofocus can also be optionally disabled via software configuration.
While the Coral Dev Boards allow the connection of only one camera module, the Coral SoM provides the possibility to connect up to two camera modules (depending on your carrier board hardware design).
Important!
This camera is not compatible with Raspberry Pi boards as it has a different connector!
Specifications
| Sensor | Omnivision OV5645 SoC (built in ISP) |
| Focus | Auto focus, focal length 2.5mm, range 10cm-infinity |
| Field of View | 84.0 degrees / 87.6 degrees |
| ISP Functions | Auto exposure control, auto white balance, auto band filter, auto 50/60Hz lumination, auto black level calibration |
| Connections | MIPI-CSI, dual lane MIPI interface |
| Dimensions | 25mm x 25mm |
Resources
A 5-megapixel camera module that's compatible with Coral boards. Connects through the MIPI-CSI interface, and provides an easy way to bring visual input into your models.
The camera connects via the MIPI-CSI interface of the Google Coral Dev Board/Dev Board Mini and allows you to easily add visual input to your machine learning models.
This camera has an autofocus feature (AFC) with a built-in AFC VCM driver. Autofocus can also be optionally disabled via software configuration.
While the Coral Dev Boards allow the connection of only one camera module, the Coral SoM provides the possibility to connect up to two camera modules (depending on your carrier board hardware design).
Important!
This camera is not compatible with Raspberry Pi boards as it has a different connector!
Specifications
| Sensor | Omnivision OV5645 SoC (built in ISP) |
| Focus | Auto focus, focal length 2.5mm, range 10cm-infinity |
| Field of View | 84.0 degrees / 87.6 degrees |
| ISP Functions | Auto exposure control, auto white balance, auto band filter, auto 50/60Hz lumination, auto black level calibration |
| Connections | MIPI-CSI, dual lane MIPI interface |
| Dimensions | 25mm x 25mm |
Resources
Original: $19.50
-65%$19.50
$6.82Description
A 5-megapixel camera module that's compatible with Coral boards. Connects through the MIPI-CSI interface, and provides an easy way to bring visual input into your models.
The camera connects via the MIPI-CSI interface of the Google Coral Dev Board/Dev Board Mini and allows you to easily add visual input to your machine learning models.
This camera has an autofocus feature (AFC) with a built-in AFC VCM driver. Autofocus can also be optionally disabled via software configuration.
While the Coral Dev Boards allow the connection of only one camera module, the Coral SoM provides the possibility to connect up to two camera modules (depending on your carrier board hardware design).
Important!
This camera is not compatible with Raspberry Pi boards as it has a different connector!
Specifications
| Sensor | Omnivision OV5645 SoC (built in ISP) |
| Focus | Auto focus, focal length 2.5mm, range 10cm-infinity |
| Field of View | 84.0 degrees / 87.6 degrees |
| ISP Functions | Auto exposure control, auto white balance, auto band filter, auto 50/60Hz lumination, auto black level calibration |
| Connections | MIPI-CSI, dual lane MIPI interface |
| Dimensions | 25mm x 25mm |
