Brass hub kits for connecting 12mm hex fitment wheels (RC-style wheels) to motors! All of our brass motor shaft hubs look almost identical but have different sized motor shaft diameters ranging from 3mm to 7mm.

Please measure your motor shaft size carefully before buying these hubs.

This is a 4mm hub, good for use with most 25D motors (with a 4mm shaft) and 12mm Hex fitment wheels.

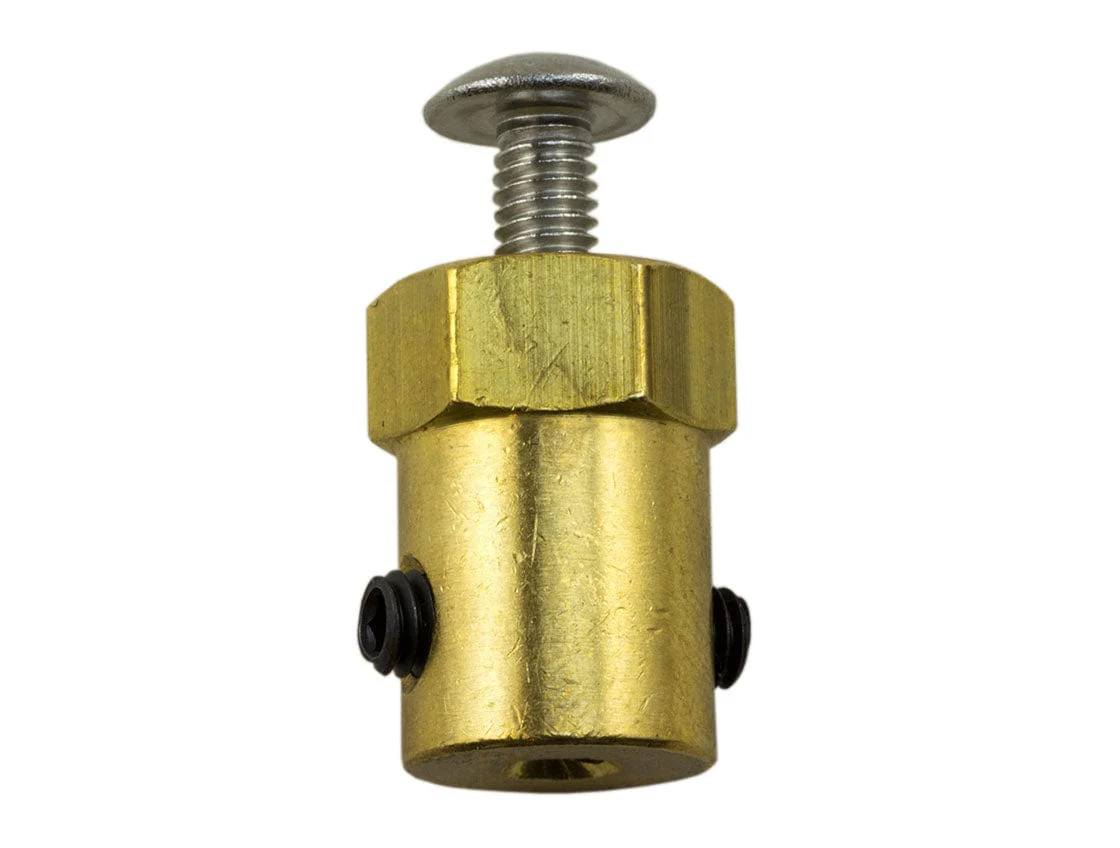

The hubs feature a motor shaft input hole on one end, and a 12mm hex and M4 screw point for fixing on the other. Most 1/10 scale RC wheels are 12mm hex.

Coupler and screws only.

Compatible with

• Most 25D motors

• Most motors with a 4mm shaft

Features

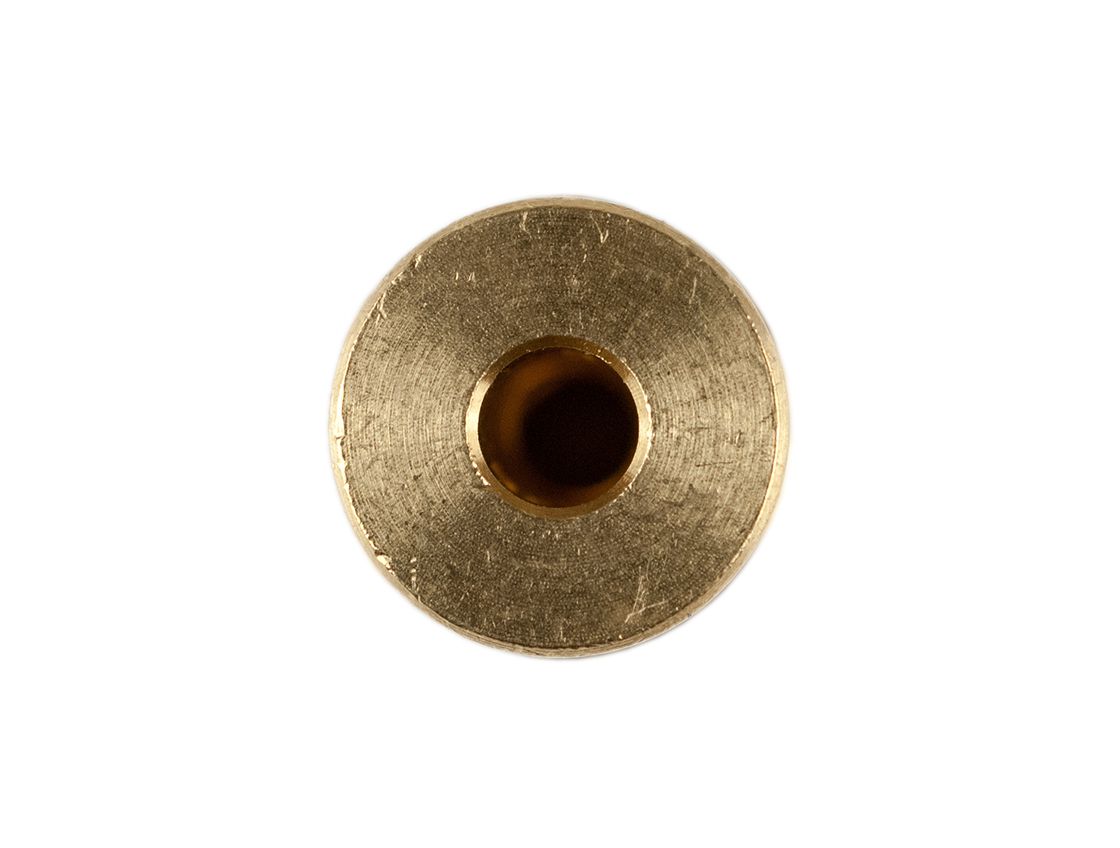

• 4mm Diameter hole for 4mm motor shafts
• 1 x Brass Coupler
• 1 x M4 Screw
• 2 x M4 Grub Screws

Specification

• Material: Brass
• Length: 18mm
• Hex Mount: 12mm
• Cylinder Outer Diameter: 11.5mm
• Shaft Fixing Thread: M4
• Hex Fixing Thread: M4
• Weight: 31g

Resources

• Assembly Guide
