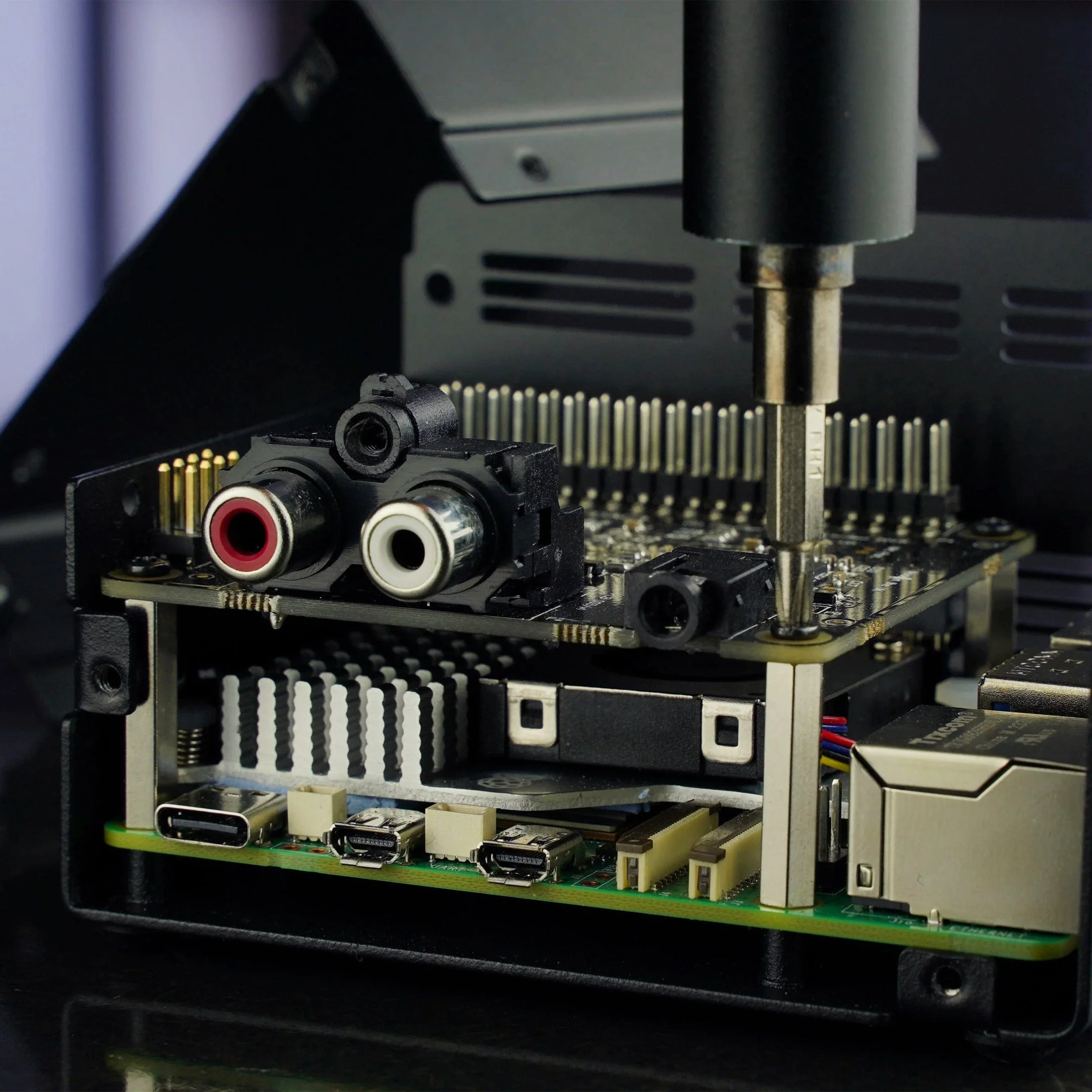

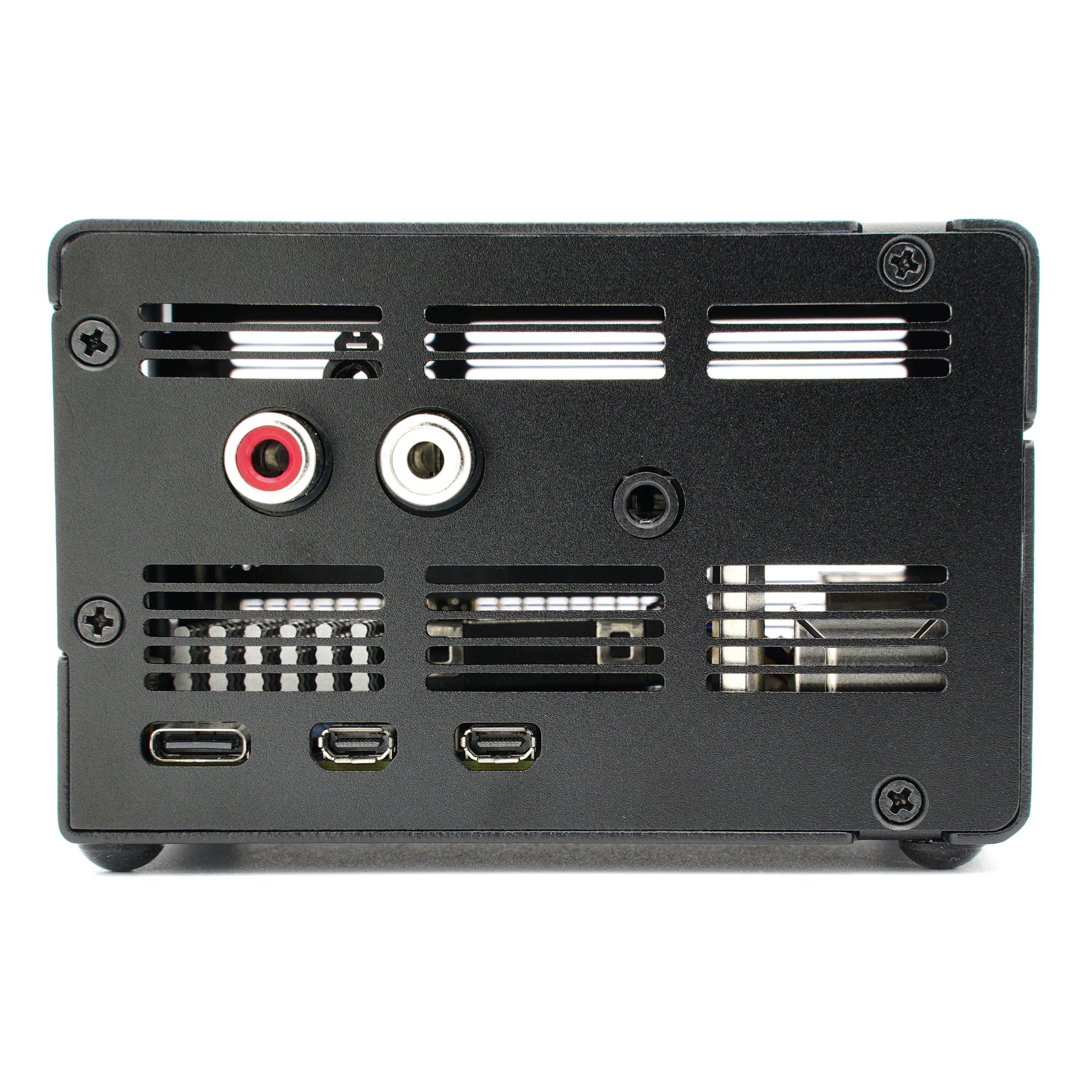

The KKSB Case for the Raspberry Pi 5 is designed to fit both the Raspberry Pi DAC+ and DAC Pro Sound Cards (previously known as 'IQAudio' DAC+/DAC Pro). It has a removable cover for easy installation of the official Raspberry Pi cooler and sound card and includes an external start button for power access without opening the case. The case also has a side slot for a GPIO cable, providing easy connectivity with other devices. It includes stackable headers, 18mm and 20mm spacers to allow airflow, and has ventilation slots on the sides for improved cooling.

The base of the case is ready to mount with the KKSB DIN Rail Mount Clip (not included) onto a 35mm Top HAT Rail. The case is also equipped with rubber feet for stability and keyholes for optional wall mounting, offering flexibility in how and where it’s set up. It's made from black anodised aluminium and has a powder-coated steel frame, protecting your Raspberry Pi. Assembly is simplified with a QR code on the packaging that links to instructions.

If you have an IQAudio DAC+ or DAC Pro, these fit as well (Raspberry Pi changed the branding but the function and format are the same.

Note: Raspberry Pi 5, Sound Cards, KKSB DIN Rail Mount Clip, Addons, GPIO Cable and electronics are NOT included

Specifications

• Compatible SBC: Raspberry Pi 5
• Compatible Sound Cards: Raspberry Pi DAC+ and DAC Pro (or IQAudio versions)
• Supported KKSB Accessories: Compatible with KKSB DIN Rail Mount Clip
• Material: Sandblasted Anodised Aluminum Case with Powder-Coated Steel Frame

Resources

• Assembly Instructions

Package Contents

• KKSB Case for Raspberry Pi 5 and Raspberry Pi DAC+ and DAC Pro
• Spacers
• Stackable Header
• Rubber Feet

Note: Raspberry Pi 5, Sound Cards, KKSB DIN Rail Mount Clip, Addons, GPIO Cable and electronics are NOT included
