The Li-ion Battery HAT integrates an SW6106 power bank management chip providing a 5V regulated power supply to your Pi from a 14500 battery. Turn your Pi a portable device!

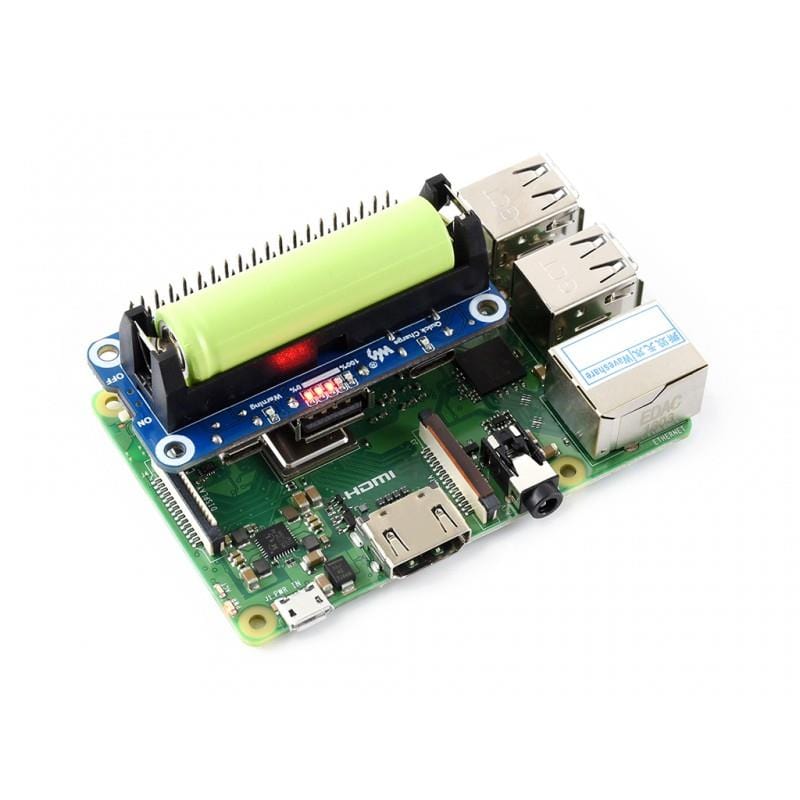

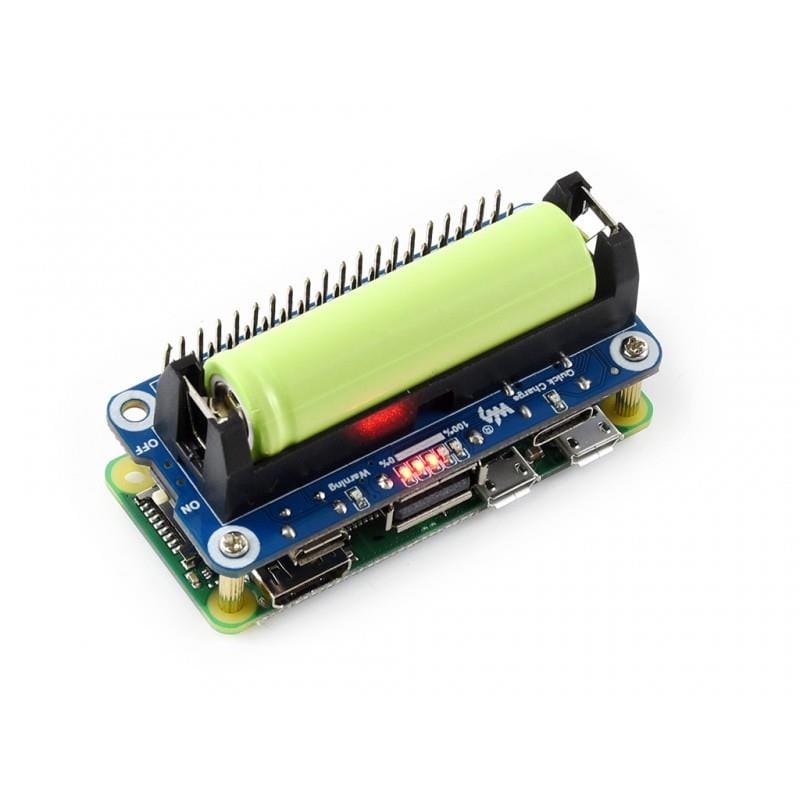

Note: 14500 battery not included but shown in images as a usage/fitment example. This is not a UPS.

The HAT will also charge the battery and comes with LED indicators for charge status and capacity. Additional LEDs indicate quick charging and polarity warnings. Bi-directional quick charge is also supported.

The board can also be used as a universal mini power bank and works with other 5V devices.

Features

• Onboard SW6106 chip, supports bi-directional quick charge
• Supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
• Lithium battery protection circuitry, provides reverse protection, overcharge/discharge protection, over current protection and short circuit protection
• Onboard indicators: quick charge, warning and power capacity

Package Contents

• 1x Li-ion Battery HAT
• 1x RPi screws pack (2pcs)

14500 battery pictured but not included

Resources

• Wiki and user guide

Specifications

• Output voltage: 5V
• Applicable battery: 3.7V 14500 lithium battery (4.2V when full charged)
• Dimension: 65mm × 30mm
• Mounting hole size: 3.0mm

What's onboard?

• 1) Raspberry Pi GPIO connector: for connecting Raspberry Pi
• 2) SW6106 power management chip
• 3) USB Type-C connector: battery charge/power output
• 4) USB Type-A connector: power output
• 5) Micro USB connector: battery charge
• 6) Raspberry Pi power switch
• 7) Battery warning indicator: on when the battery is reverse
• 8) Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
• 9) Quick charge indicator: on when quick charging
• 10) 14500 battery holder
