The Apollo Automation M-1 LED Matrix is a vibrant, high-performance display featuring 4096 pixels in a HUB75 format. Powered entirely by the included 5V (USB-C or WAGO) ESP32-S3 controller, it requires no additional power sources, keeping your setup clean and simple. The compact controller hides discreetly behind the matrix for a clean installation.

Pre-flashed with WLED firmware, the M-1 offers an easy and fun user experience right out of the box. Customise your display with animations, effects, and colours, or use the Pixel Magic tool to create your own unique images and designs.

The M-1 is designed as a complete product, with the controller specifically made to work with the HUB75 panel included in the kit. It can be used with other HUB75 panels, but you might encounter some compatibility issues.

A USB-C cable is required for power and programming (not included).

Features

• Power input: 5V 3A via USB-C or WAGO connector
• Built-in Apollo LED controller with WLED pre-installed

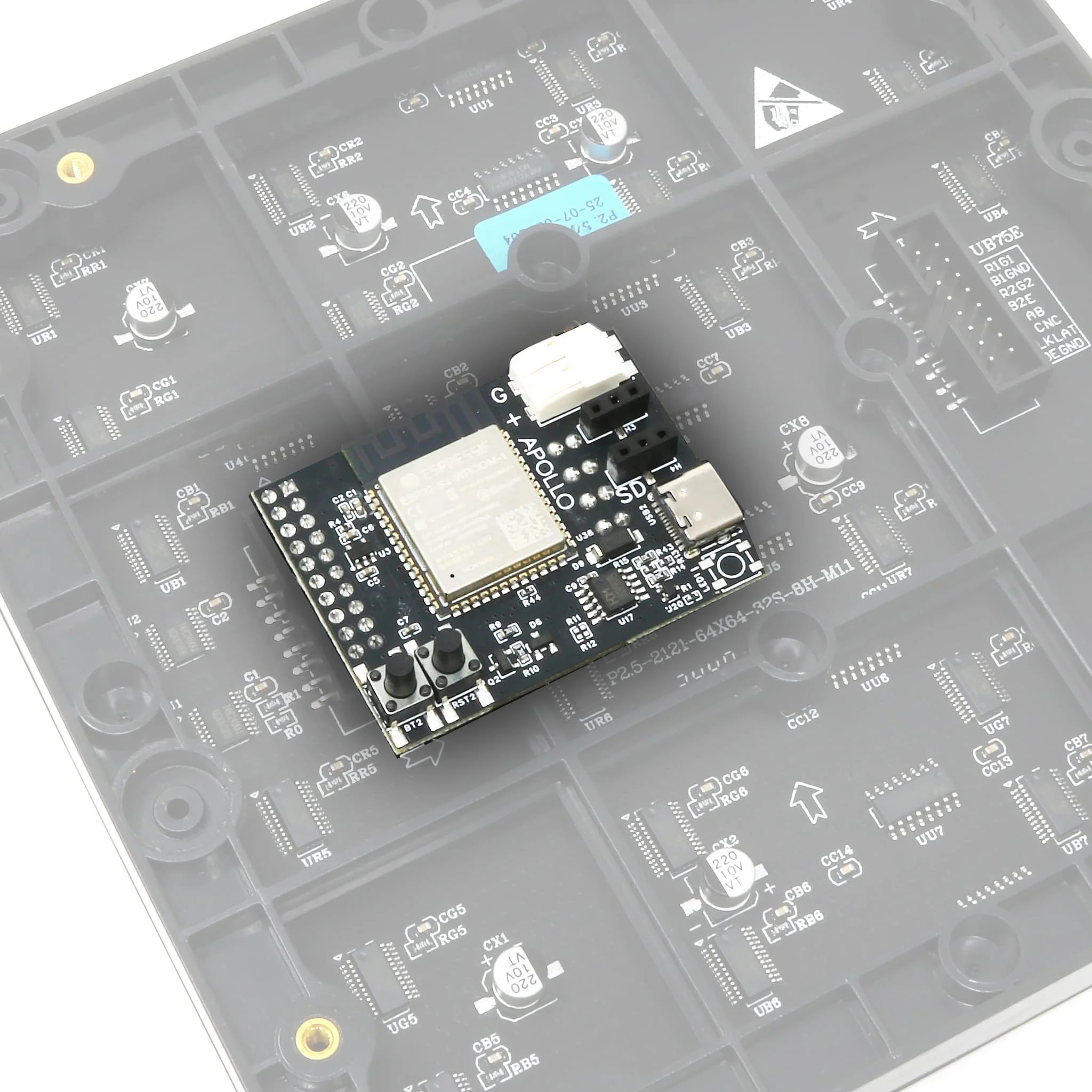

• Designed to hide behind panels for discreet installation
• Drives HUB75 LED panels with 4096 pixels
• Compact form factor for wall or panel mounting
• P2.5 or 2.5mm Pitch (Spacing between LEDs)
• ESP32-S3
• Dimensions: 160.3mm x 160.3mm x 25.4mm

Resources

• Product wiki
• Pixel Magic tool
• WLED
• Apollo Automation Discord

Package Contents

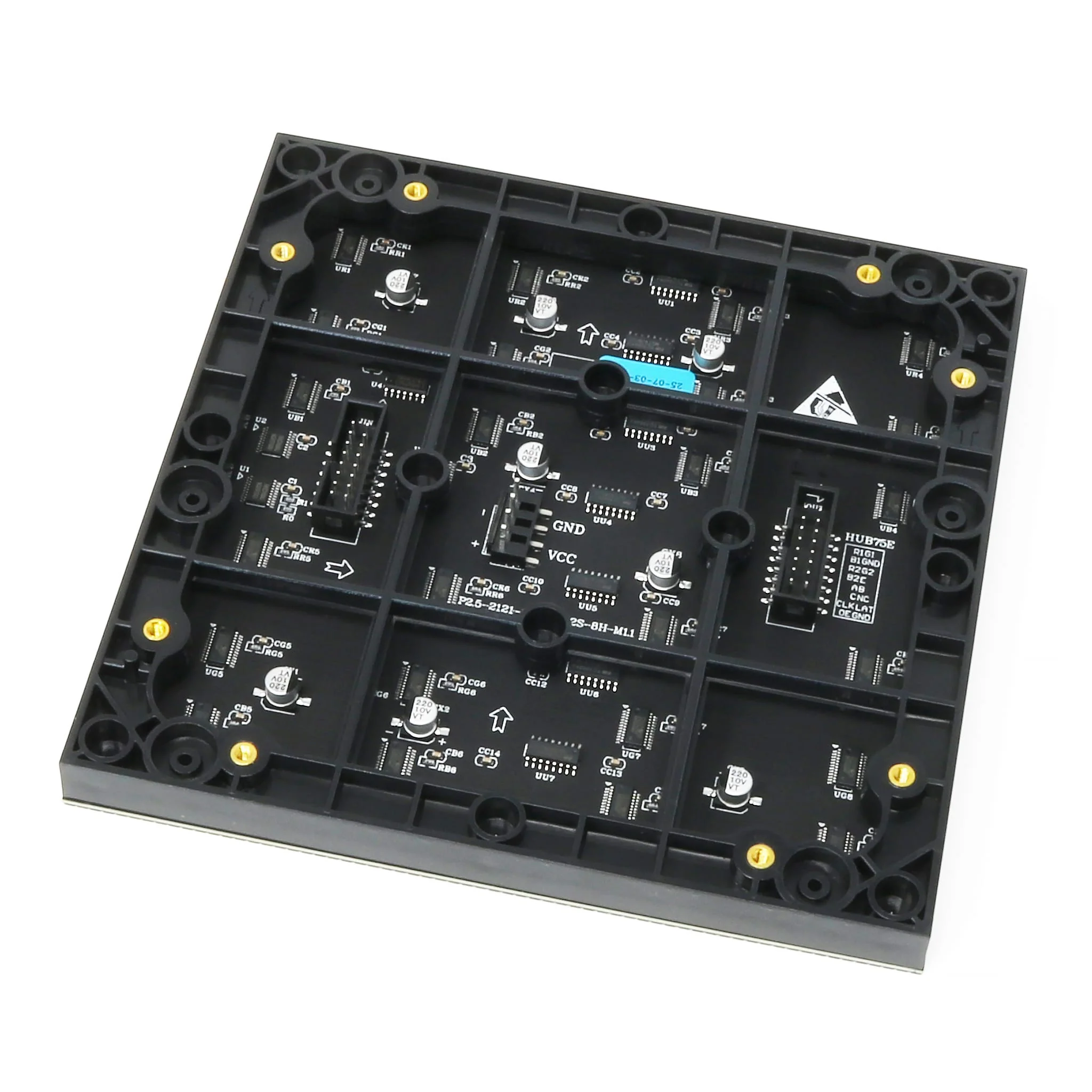

• 1x M-1 LED matrix HUB75 panel
• 1x M-1 Controller
• 1x 3D-printed stand
