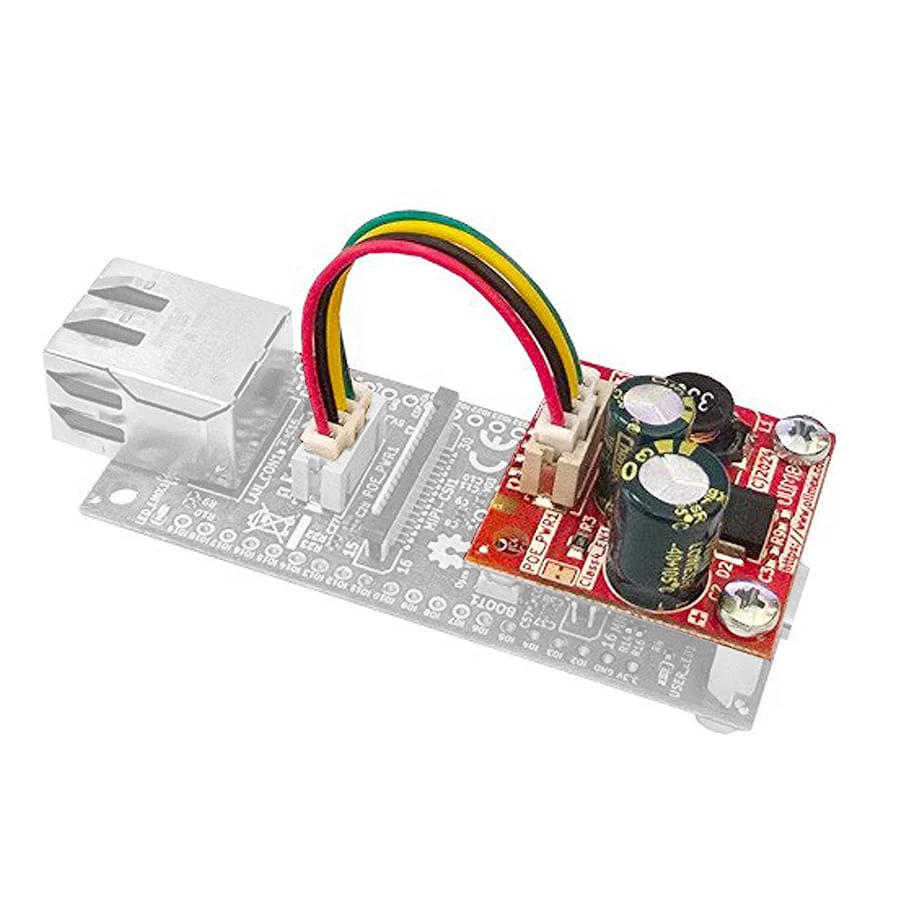

The POEv3 is a an add-on board for the Olimex ESP32-P4-DevKit which allows the board to be powered via PoE (Power-over-Ethernet) where PoE network equipment is available.

The module delivers 5V 1A (IEEE 802.3) for the target board and comes with a 4-pin 6cm cable and metal standoffs/fixings to allow it to be attached to top of the ESP32-P4-DevKit.

Olimex ESP32-P4-DevKit not included.

Features

• IEEE 802.3 PoE support
• Input: 37-57VAC
• Output: 5V/1A
• 4-pin connector with 6cm cable compatible with ESP32-P4-DevKit
• Two spacers and four screws to mount on ESP32-P4-DevKit
• Dimensions: 30x30x18mm

Resources

• User manual
• EU DoC
• UKCA DoC

Package Contents

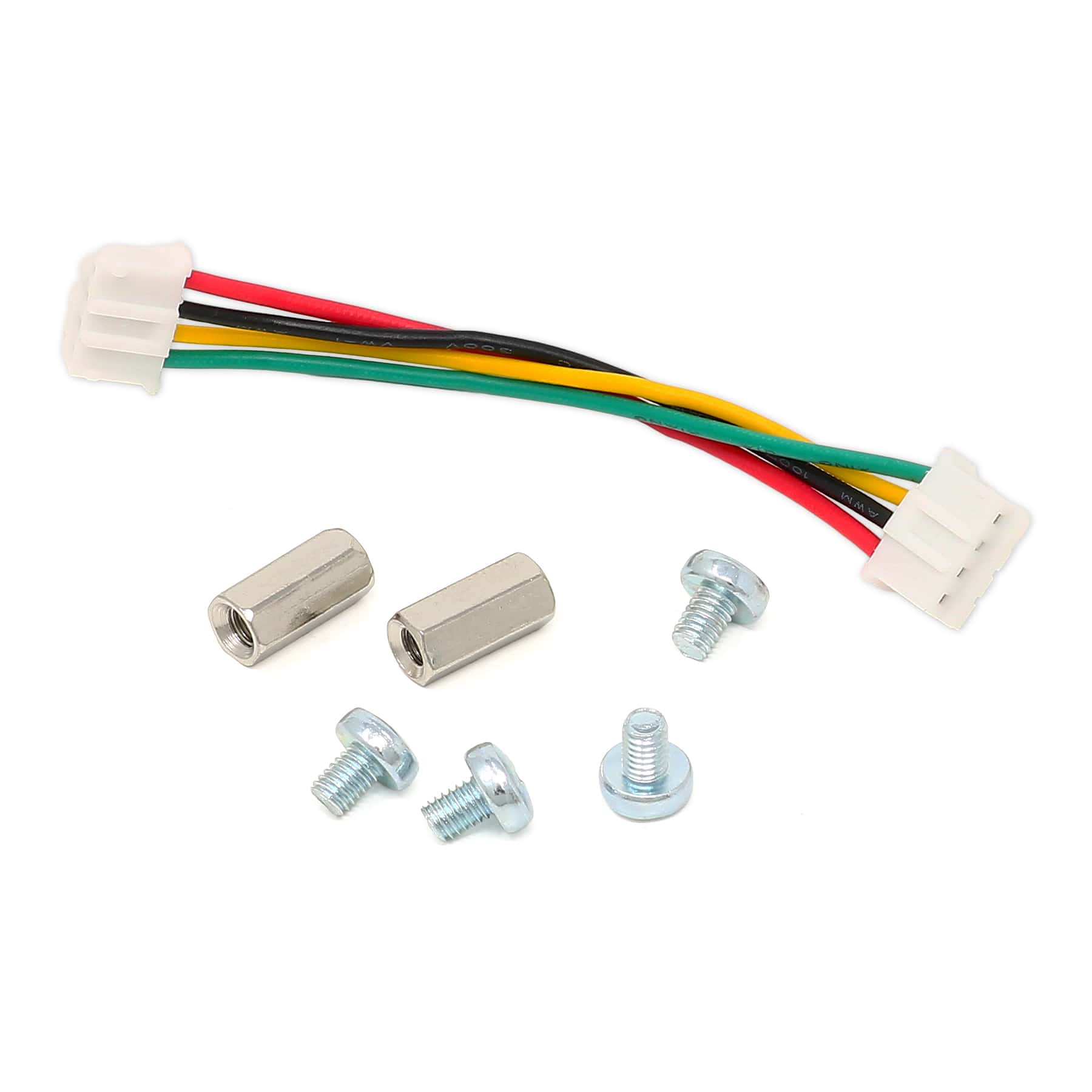

• 1x Olimex POEv3 - Non-Isolated Power over Ethernet Module
• 1x 4-pin 6cm cable
• 1x Fixing pack

Olimex ESP32-P4-DevKit not included.
