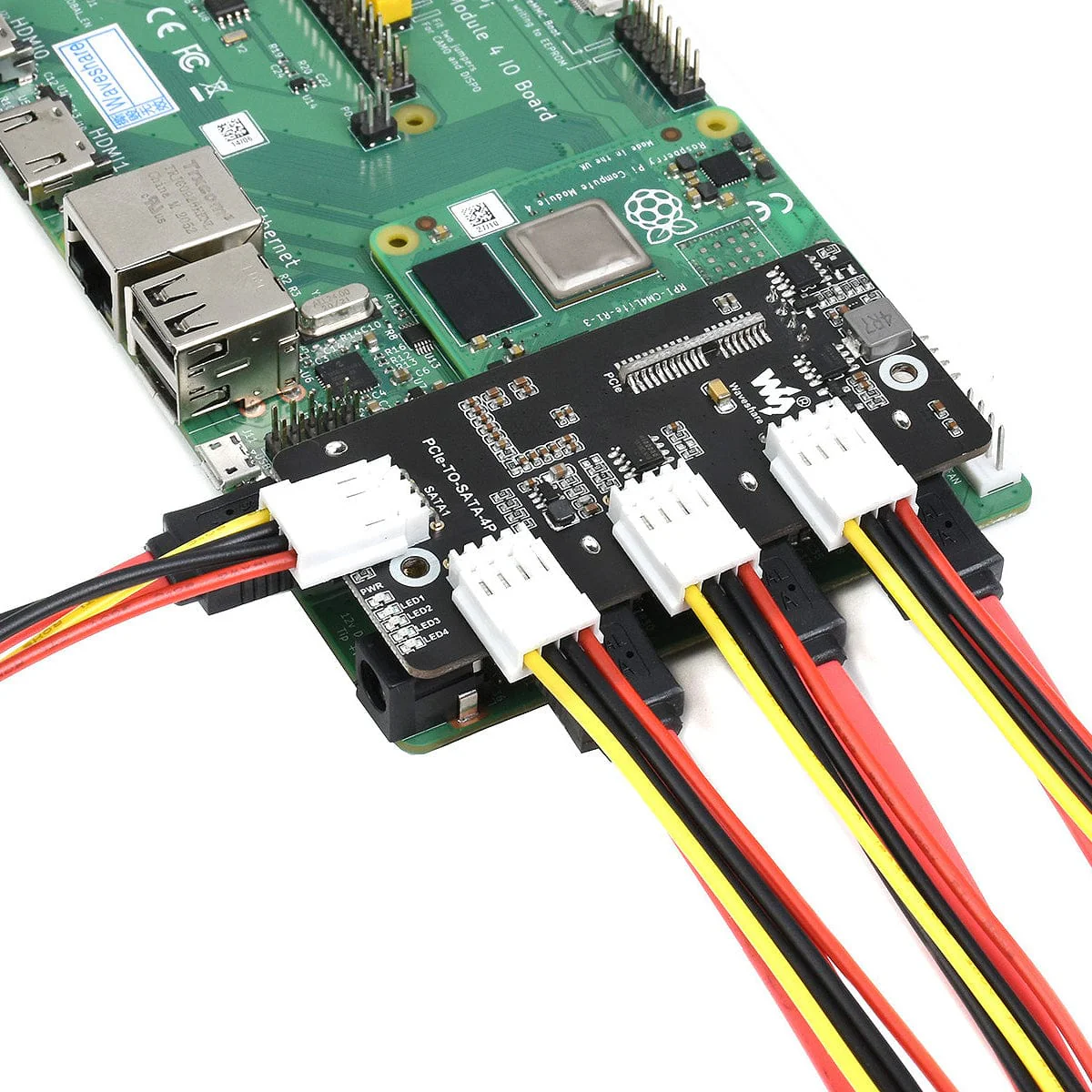

The Compute Module 4 IO board includes a 1x PCIe Gen 2.0 slot allowing you to add additional hardware to your CM4 projects.

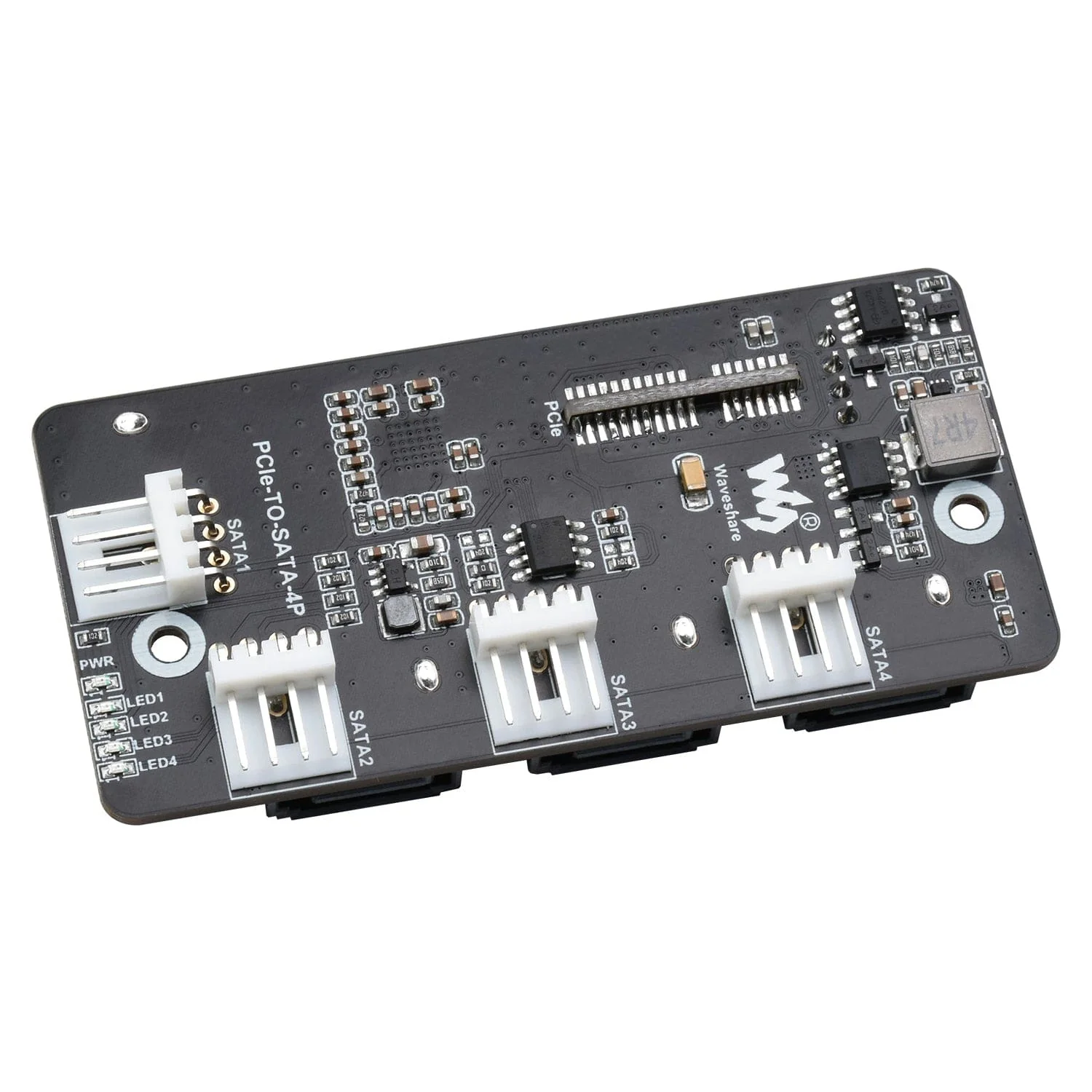

This PCI-E to 4-channel SATA 3.0 adapter board adds a low latency, low-power AHCI controller to your CM4 IO board, allowing you to build up various high-speed IO systems, including servers, high-capacity system storage or surveillance platforms.

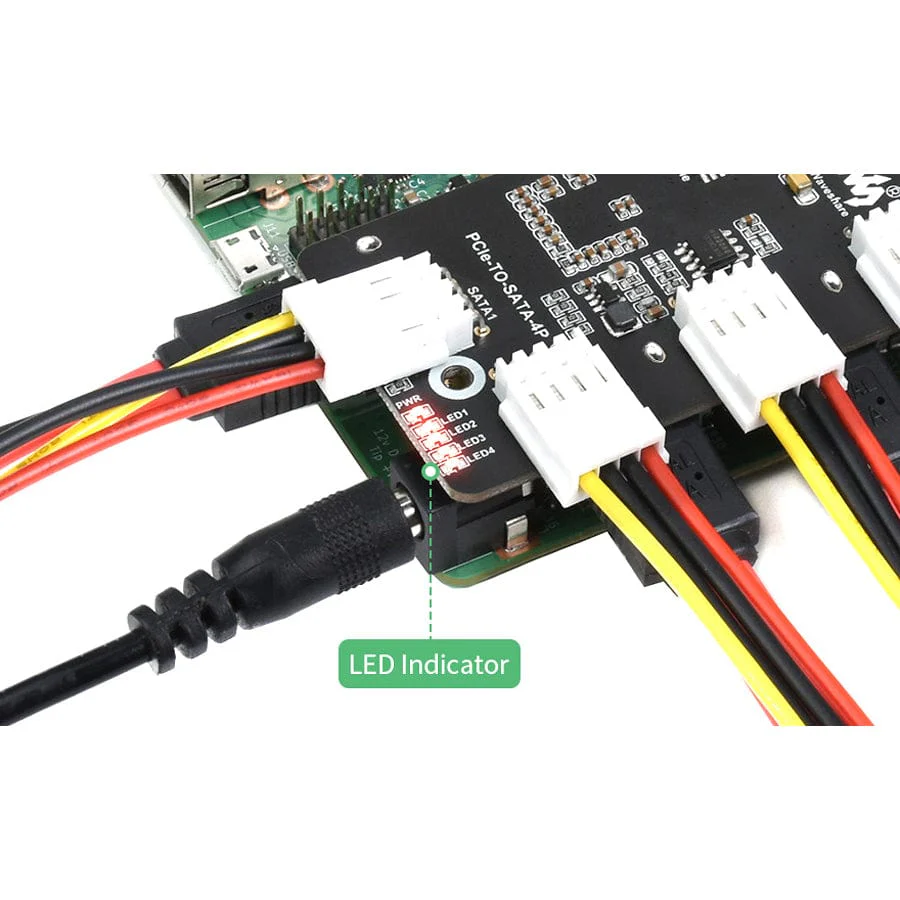

In addition to the power supply from the PCI-E interface, there's also a power header for an external 5v/12v input. LED indicators are onboard for each SATA channel, flashing whenever data is read/written.

Note

• The module is PCIe Gen 3 interface but the Raspberry Pi CM4 is PCIe Gen 2 interface, therefore the max speed is 5Gbps
• Supports 5V/12V SATA Hard Disks. Does not Support the M.2 Interface
• Does not support direct access to a PC motherboard

• Storage, CM4 and IO board are not included

Features

• Supports single-channel PCI Express
• Four power-saving modes of L0s/L1/L23/L3
• Support L1 sub-state deep power saving mode
• Supports SRIS, AER, LTR
• Supports SATA LED
• Supports NCQ & AHCI SPEC 1.4
• Four SATA3.0 (6Gbps) ports
• Supports the switching based on the port multiplier commands
• Supports SATA Partial/Dormancy power management
• Overall dimensions: 82mm x 39mm
• 4-pin Power Port connector: PH 2.54

Package Contents

• 1x PCIe-TO-SATA-4P
• 1x SATA Adapter Cable
• 1x Screws pack

Storage, CM4 and IO board are not included

Resources

• Product Documentation
