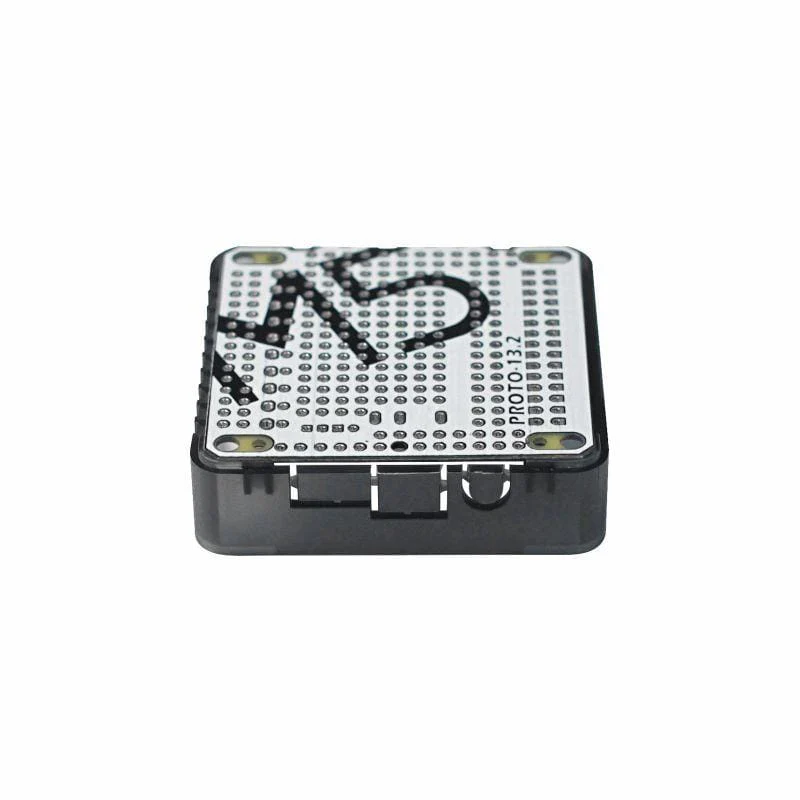

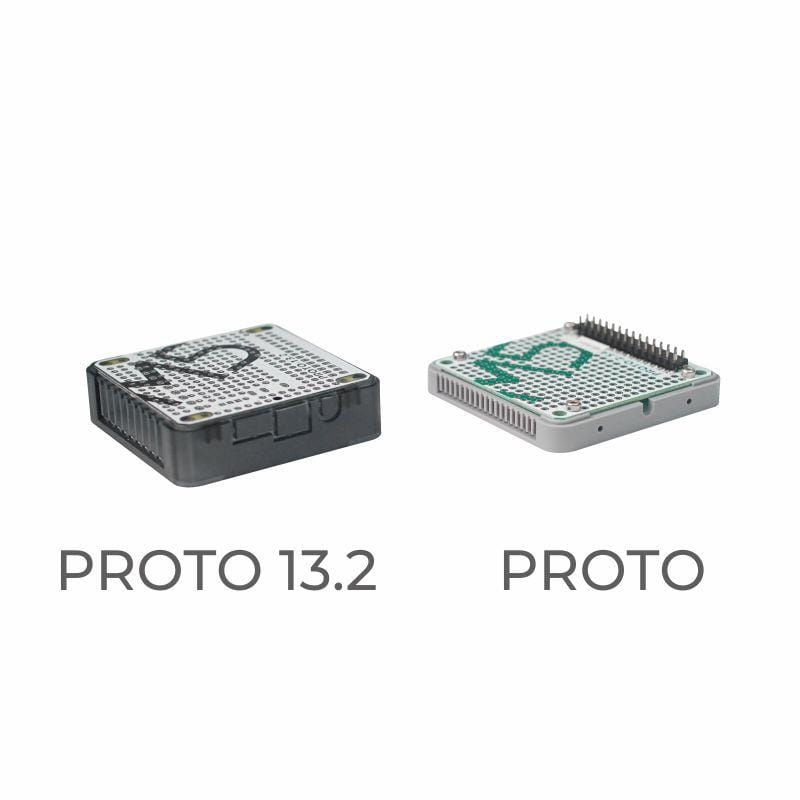

M5Stack Proto Pegboard Module - 13.2
This Proto Pegboard 13.2 is a universal DIY proto module in the m5stack stack module series with a height of 13.2mm. You can design and build the prototype circuit to suit your needs, and interact with the M5Core on the top layer through the M-BUS. There is a HY2.0 4P, DC power socket, VH3.96 and other common openings on the board, so it is easy to use.
Features
- Main Hole Size: 0.039" 1mm (CNC Drilled)
- Hole Pitch: 0.1" - (2.54 mm)
- Entire Hole Quantity: 169 Holes

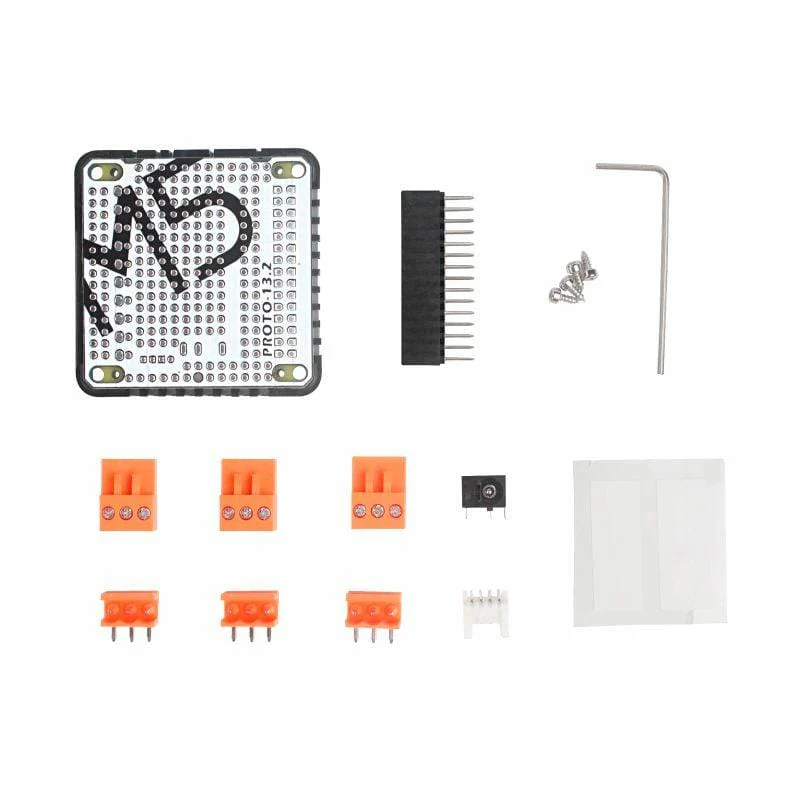

Package Contents
- 1x Proto 13.2 board
- 1x M-bus
- 3x VH-3.96 3P Plug & Plug Base
- 1x HY-2.0 4P Plug Base
- 1x DC 5V Power outlet
- 4x M2*5mm Hexagon self tapping screw
- 1x M2 Hex Key
- 1x Sticker
Specifications
| Resources | Parameter |
|---|---|
| Net weight | 24g |
| Gross weight | 49g |
| Product Size | 54.2 x 54.2 x 13.2mm |
| Package Size | 93 x 64 x 20mm |
Resources
