The Engineer PA-09 is a precisely engineered universal crimping tool, which yields a professional crimp finish on a variety of mini crimp pins from the main crimp pin vendors.

Designed for crimping 1.25 to 2.5mm micro connectors or D-sub connectors (#32 - #20 AWG wires, narrow-pitch).

The PA-09 Pin Compatibility Chart can be viewed by clicking here.

Features

• Crimps AWG32-20 wires across 80 different pins (& D-SUB connector contacts) from the main crimp pin manufacturers (Molex, JST, Tyco, AMP, HRS, JAE etc.)
• Professional results (& at a fraction of the cost as charged by the Pin Vendors for their specific crimping tools)

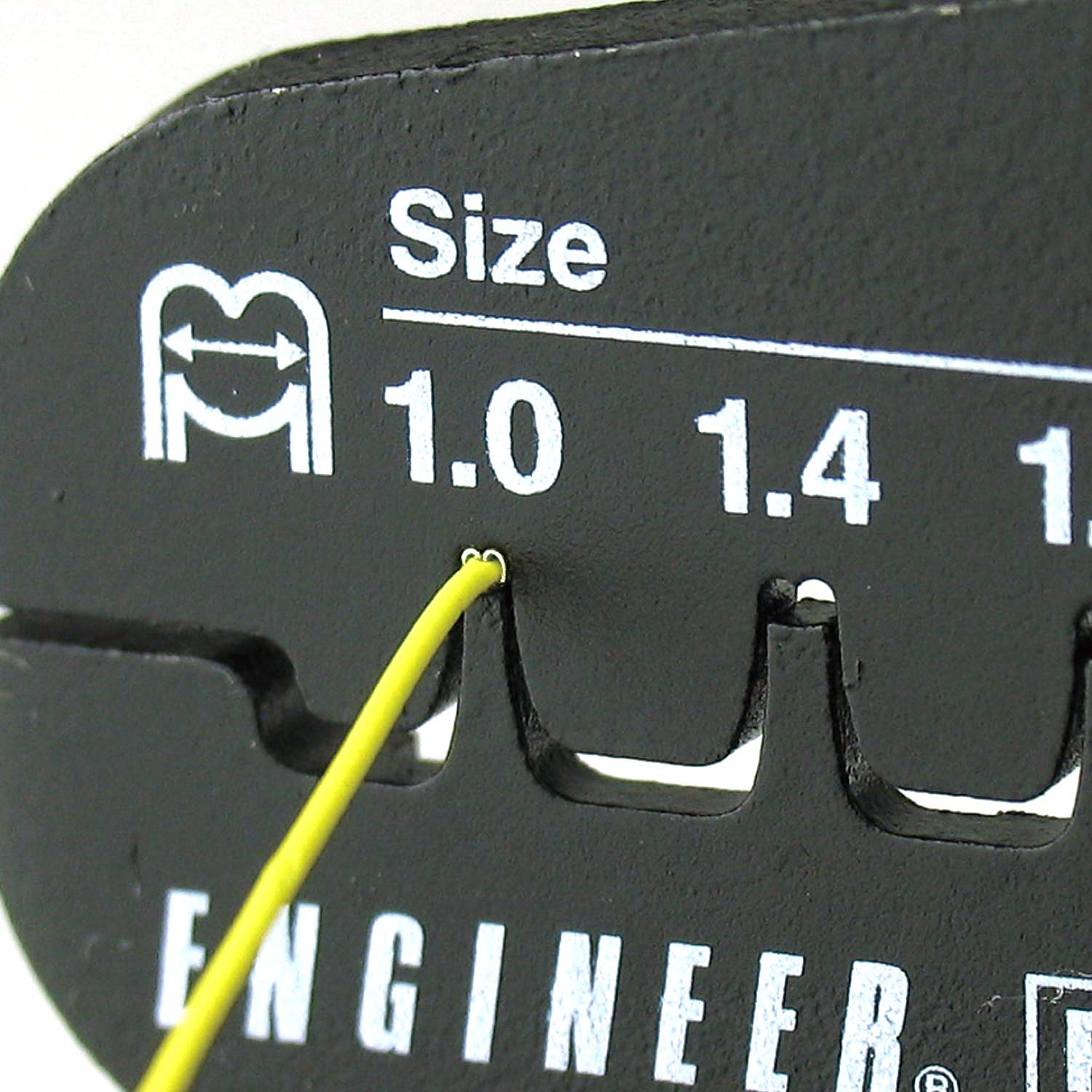

• 4 different crimping die widths - 1.0mm, 1.4mm, 1.6mm & 1.9mm
• Capable of crimping 1.25 to 2.5mm pitch connector pins (narrow-pitch)
• Spring-loaded handles for easy operation (handles latch shut for storage)
• Oil-resistant TPR (thermoplastic rubber) grips for unmatched comfort (strap holes at end of handles)
• Original joint-screw 'by ENGINEER' allows quick & easy maintenance
• Light & compact body for fatigue-free work
• Constructed from S55C Carbon Steel
• Made in Japan (ROHS compliant)
