The Grove Shield for Seeeduino XIAO is a plug-and-play Grove extension board for the Seeeduino XIAO or Adafruit QT Py, breaking out the board's pins into handy pads and Grove connectors. No more jumper wires and soldering, allowing you to get on with creating projects with your XIAO.

The eight onboard Grove connectors include two Grove IIC and one UART. It acts as a bridge for the Seeeduino XIAO and Seeed's Grove system, which provides over 300 different Grove modules including sensor, actuator, communication, displays and more.

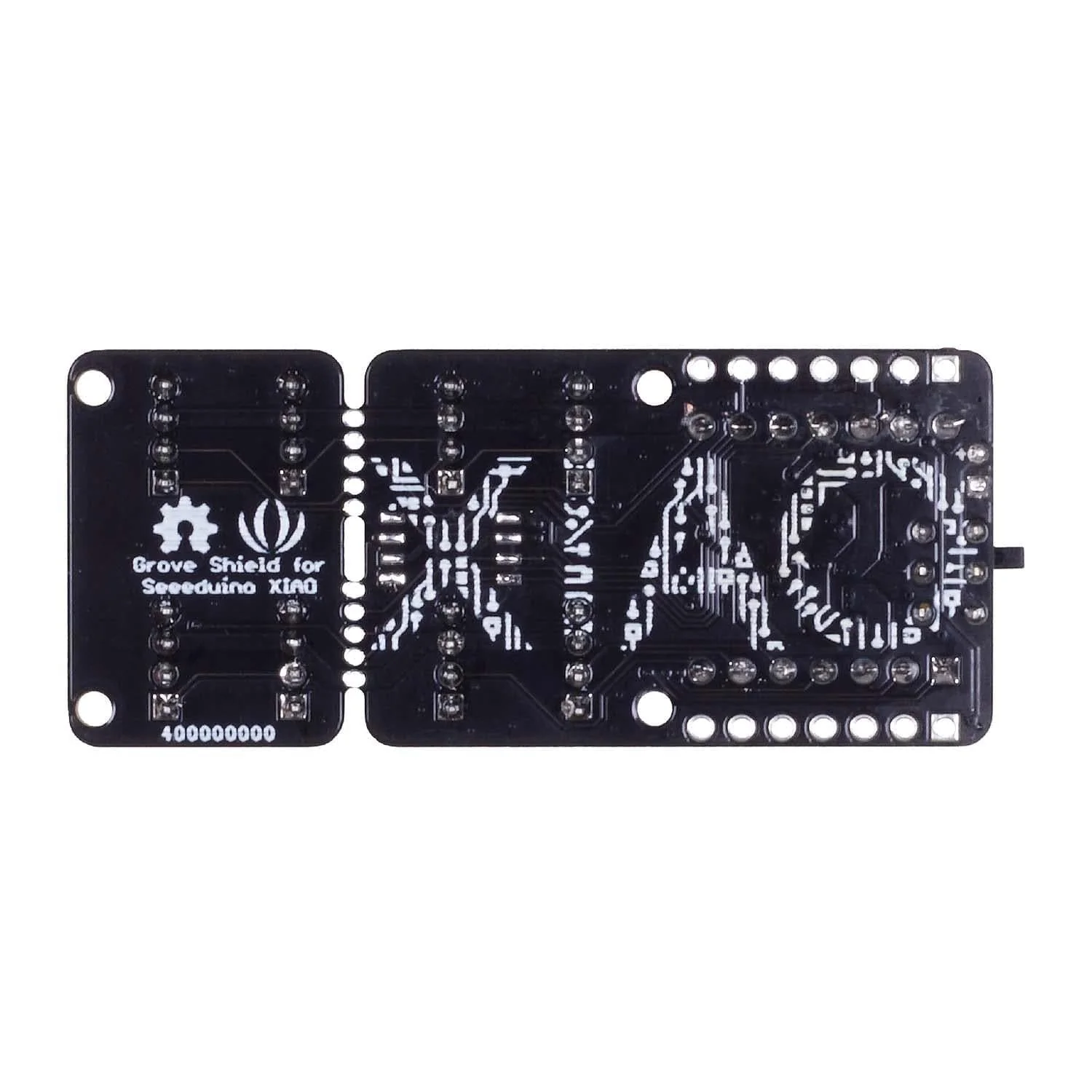

With the onboard battery management chip and battery bonding pad, you could easily power your Seeeduino XIAO with a 3.7V lithium battery and recharge it, making your projects, especially wearable ones, more flexible and portable. You can even break the board through the onboard PCB stamp holds according to your actual needs of the project (only 25x39mm in dimension after break-off), making it smaller than smaller!

As an extension board, the Grove Shield for Seeeduino XIAO also breaks out all 14 pins from the XIAO, and its onboard power switch and charging status indicator light makes it more user-friendly. The Shield even reserves the SPI-Flash bonding pad for an advanced developer who may need to add Flash to Seeeduino XIAO to expand its memory space, providing Seeeduino XIAO with even more possibilities.

Features

• On-board Lithium Battery Charging and Management Function
• Grove connectors (Grove IIC*2, Grove UART*1), all 14 GPIO broken out
• Compact design
• SPI-Flash Bonding Pad Reserved
• On-board Power Switch and Charging Status Indicator Light
• Compatible with Seeeduino XIAO or Adafruit QT Py

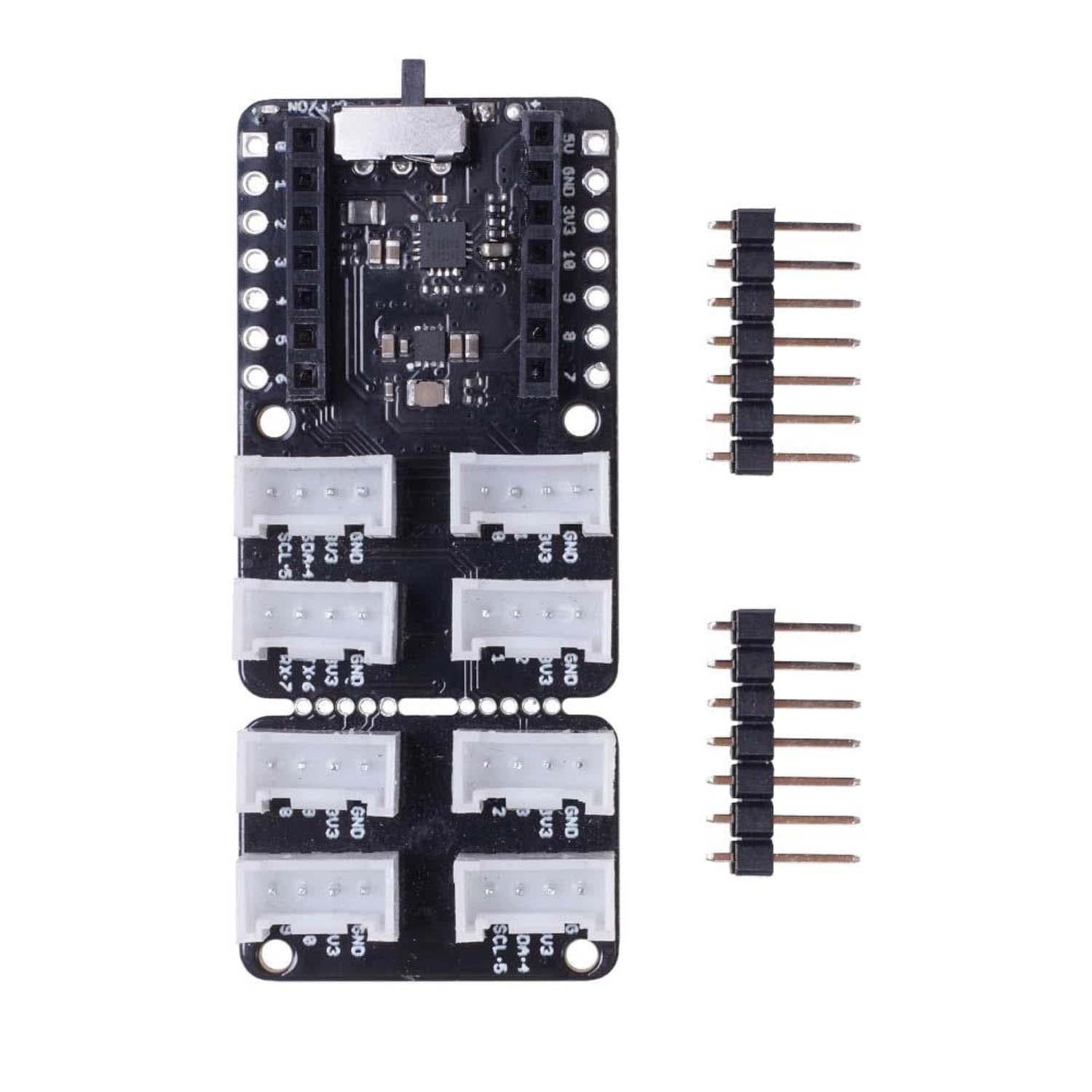

Package Contents

• 1x Grove Shield for Seeeduino XIAO
• 2x 1x7pins male header

XIAO mainboard not included

Resources

• Product Wiki

Specification

Parameters	Value
Power Supply	5V / 3.7V Lithium Battery
Load Capacity	800mA
Charging current	400mA (Max)
Operating Temperature	- 40°C to 85°C
Storage Temperature	-55°C to 150°C
Grove Interface	Grove * 8 (IIC*2 / UART*1)
